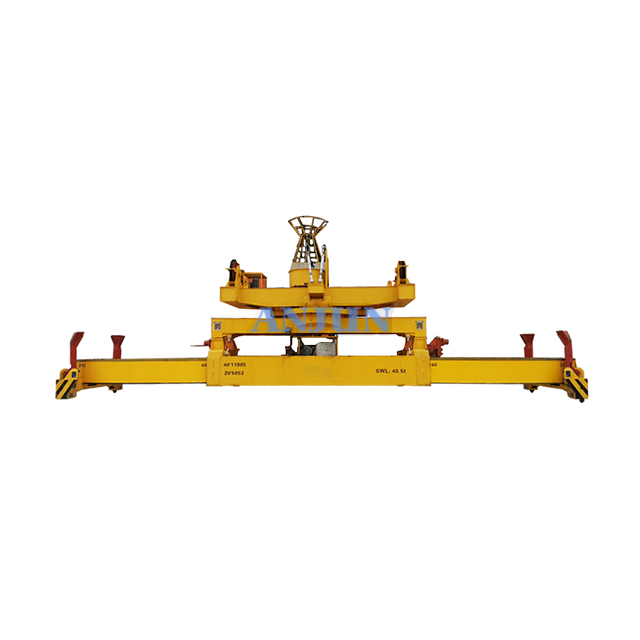

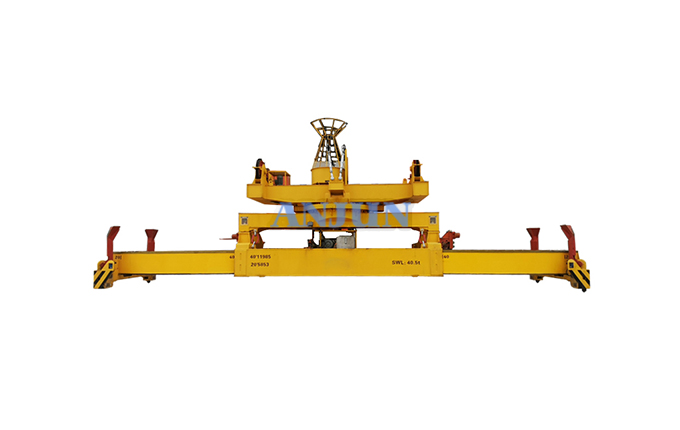

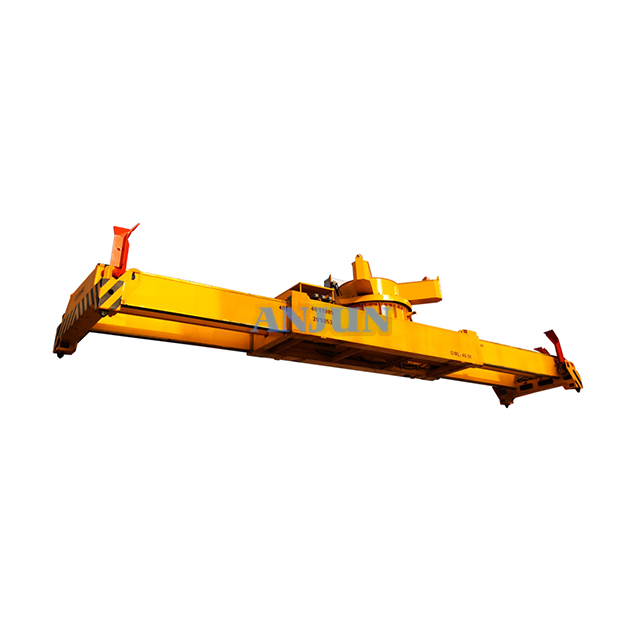

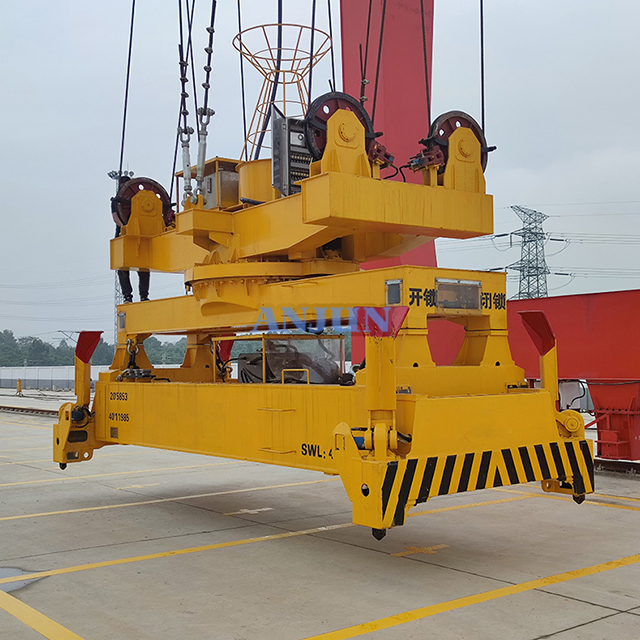

20FT 40FT Heavy Lifting Hydraulic Twin-Lift Container Spreader for Crane

Container Spreader Description

The hydraulic mobile double-container spreader is a professional equipment used for container loading and unloading operations. It uses hydraulic technology and has the characteristics of flexible movement, easy operation and high efficiency. The spreader usually consists of a hydraulic system, support structure, lifting mechanism, moving mechanism and other parts, which can effectively improve the efficiency and safety of container loading and unloading operations. The hydraulic system of the hydraulic mobile double-box spreader adopts advanced hydraulic control technology to achieve smooth lifting and lowering operations of the spreader. At the same time, the hydraulic system can also accurately control the spreader according to actual needs, ensuring that the spreader can work stably and reliably under various working conditions.

Technical Data
Automatic container spreader. It includes 4 steel wire ropes, which have rigging rings at the end of the steel wire ropes. The ends that connect with the crane have a concentrated ring.

Item	20'	40'
Rated SWL	25-35T	32-45T
Max. SWL	40T	50T
Dead Weight	1.2-2.6T	1.2-2.6T

2.Overall Dimensions

Item	20'	40'
Distance between lock centers(length)	≈ 5853 mm	≈11985 mm
Distance between lock centers(width)	≈ 2260 mm	≈2260 mm
Overall Length	≈ 6058 mm	≈12188 mm
Overall Width	≈ 2610 mm	≈2610 mm
Frame Height	≈ 636 mm	≈731 mm

3. Technical Parameter

Item	20'	40'
Dia. of pressed wire rope slings	32 mm	36 mm
Length of pressed wire rope slings	3.5m per piece (4 pieces for each set)	8.5m per piece (4 pieces for each set)
Steel Frame	Material Q345B	Material Q345B

Container Spreader Feature

1. Light weight
2. Semi automatic
3. Designed for use with cinventional ships and harbour cranes
4. Reliable with simple locking/unlocking mechanism and all four twist lock activated throught one manually
operated handle
5. Suspendend on the crane by two wire ropes
6. The spreader shall have corner guides as detacheable flippers
Available with no impetus container spreaders, semi-automatic container spreader, telescopic container
spreader, empty container spreader box, doublecontainer spreader, container spreader devices and so on.

Container Spreader Application

Telescopic Container Spreader
The telescopic container spreader is suitable for 20ft,40ft,45ft standard container lift.
 The telescopic container spreader is the most widely used in port crane container spreader.

Rotating Container Spreader
The rotating container spreader is suitable for 20ft,40ft,45ft standard container lift.
The rotating container spreader is suitable for rotating containers.

Semi Automatic Container Spreader
The semi automatic container spreader is suitable for 20ft,40ft,45ft standard container lift.
The semi automatic container spreader is simple structure.
This container spreader can drive by electric or mechanical.
