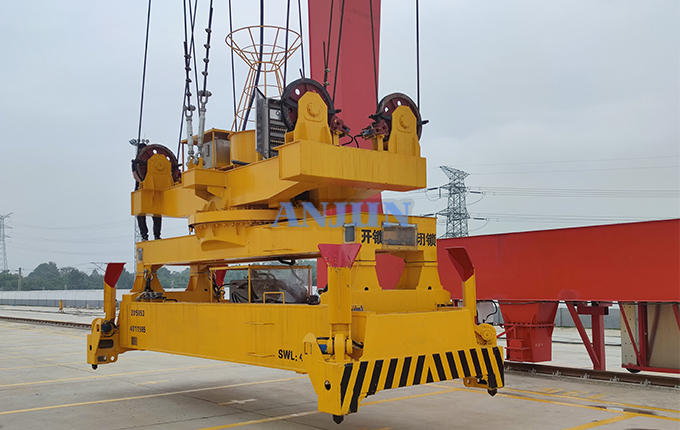

Telescopic Container Spreader
The telescopic container spreader is suitable for 20ft,40ft,45ft standard container lift.
The telescopic container spreader is the most widely used in port crane container spreader.
Rotating Container Spreader
The rotating container spreader is suitable for 20ft,40ft,45ft standard container lift.
The rotating container spreader is suitable for rotating containers.
Semi Automatic Container Spreader
The semi automatic container spreader is suitable for 20ft,40ft,45ft standard container lift.
The semi automatic container spreader is simple structure.
This container spreader can drive by electric or mechanical.
Repair and Maintenance
1.Twist lock
1.Each twist lock should be lubricated (Grease ZG-3), lubricate the spreader half a year.
2 Hinge point of the connecting rod should be lubricated frequently.
3. After operation, please check if there are damages on the twist lock.
Bearing block of the connecting rod should be lubricated frequently.
2.1. After 50 hours' and 250 hours' operation, all the fasteners should be fastened again, and all the lubricating parts should be lubricated.
2. After 100 hours' operation or lifting 1500 containers, check if all the screws and fasteners are fastened. If loose, please fasten again.
3. After 1000 hours' operation or lifting 15000 containers, all the lubricating parts should be lubricated.
4. After 1500 hours' operation or lifting 25000 containers, the twist lock structure should be checked.
aDisassemble all the four twist lock structures.
b)If any problem, please replaced accordingly.
c)Washing all the parts.
d)Install the four twist lock structures.
5. After 3000 hours' operation or lifting 50000 containers, the twist lock structure should be checked, if there are cracks or other faults, please replace timely.
After 6000 hours' operation or lifting 100000 containers, please replace the twist lock structure.
