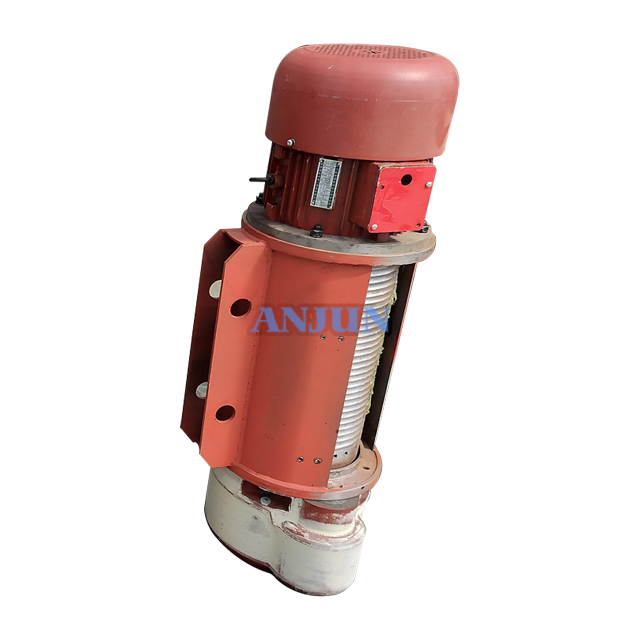

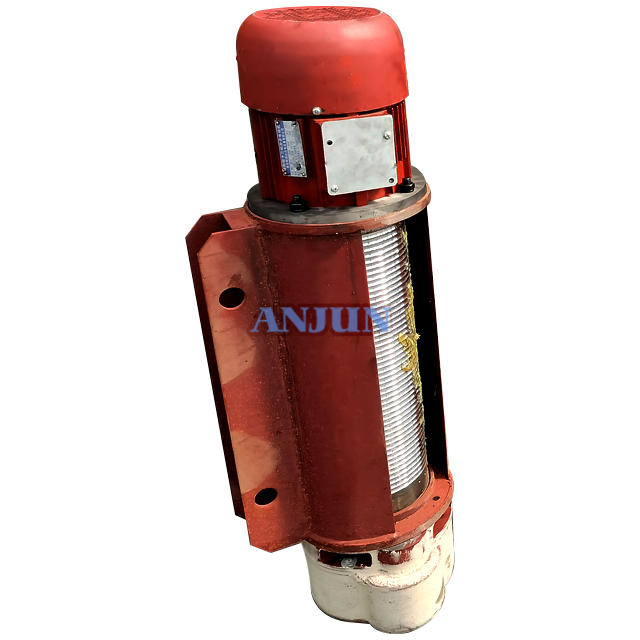

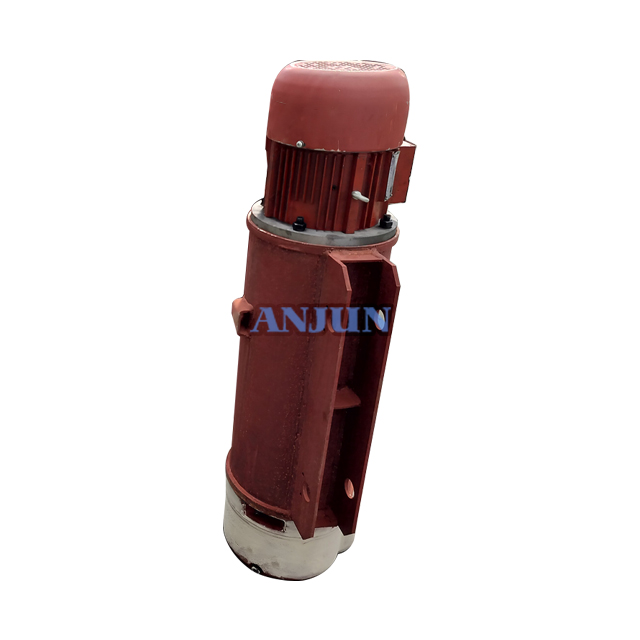

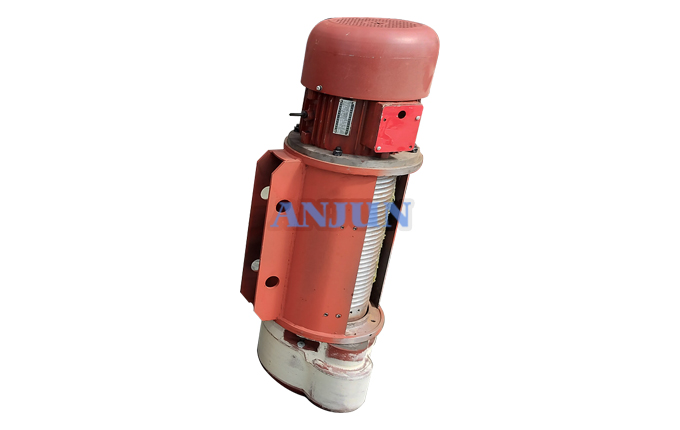

Factory Price Electric Wire Rope Hoist 3ton for Crane CD/MD Type Using In Indoor Construction Equipment

Electric Wire Rope Hoist Design

CD, MD 0.5 ~ 32t series wire rope electric hoist is a universal portable lifting equipment. The product is compact in structure,
small in size,large in lifting capacity and wide in use. It is an effective tool for improving labor conditions and improving
productivity,and is a general lifting device for industrial and mining enterprises.
We are original manufacturer, providing customers best price. Meanwhile, our factory adopts brand motor, with stable performance, tested that it can work 30000 hours without malfunction, with a normal service life of over 10 years.

Electric Wire Rope Hoist Operating Conditions

1.Altitude does not exceed 1000m
2.Ambient air temperature is -20 ° C ~ +40 ° C
3.Ambient air humidity is not more than 85% (at 25 ° C)
4.Power: three-phase AC, 380V, 50HZ. Motor terminal voltage fluctuation ±10%
5.The electric hoist is generally installed indoors. When installing outdoors, a rain cover should be added.
When the above environmental conditions are not met, special orders are made according to non-standard products.

Electric Wire Rope Hoist Installation

a) Used with LD and LX single beam cranes
b) Mounted on a fixed suspended I-beam rail for linear or curved movement
c) Fixed installation, for lifting or winch, divided into four ways: upper, lower, left and right
Electric hoists are not suitable for use in environments with explosive or corrosive gases.
They are also not suitable for lifting molten,red hot metals,other flammable and explosive materials.
