CD MD Type Insulated Antimagnetic Electric Hoist

Place of Origin:
Henan,China
Sling Type
Wire Rope
Lift Speed
1.2m/min
Lift Weight
50 tons
Share With:
Electric Wire Rope Hoist Description
The insulated electric hoist is a special-purpose electric hoist, mainly suitable for electrolysis workshops and smelting workshops of electrolytic aluminum, magnesium, lead, zinc, copper and other non-ferrous metals. The insulated electric hoist is equipped with insulation systems in the trolley transmission mechanism, lifting mechanism and other places to ensure that the resistance value of each insulation point is not less than 1.0MΩ at normal temperature. The insulation system uses materials with good insulation, high strength and good wear resistance. Manufactured, the product basically consists of a lifting mechanism, operating mechanism, insulation system, electronic control system, etc. The product quality complies with ISO, GB, JB and other standards.
We are original manufacturer, providing customers best price. Meanwhile, our factory adopts brand motor, with stable performance, tested that it can work 30000 hours without malfunction, with a normal service life of over 10 years.

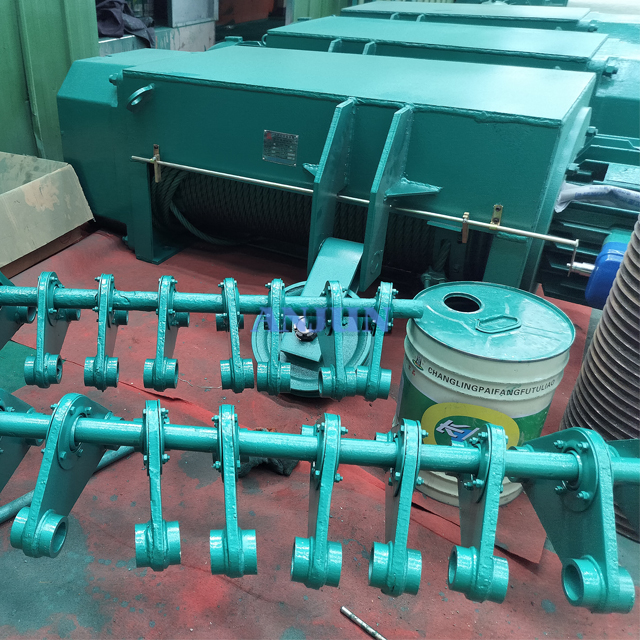

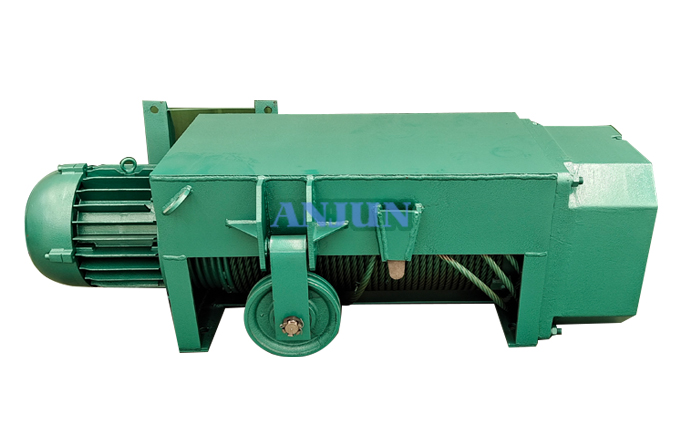

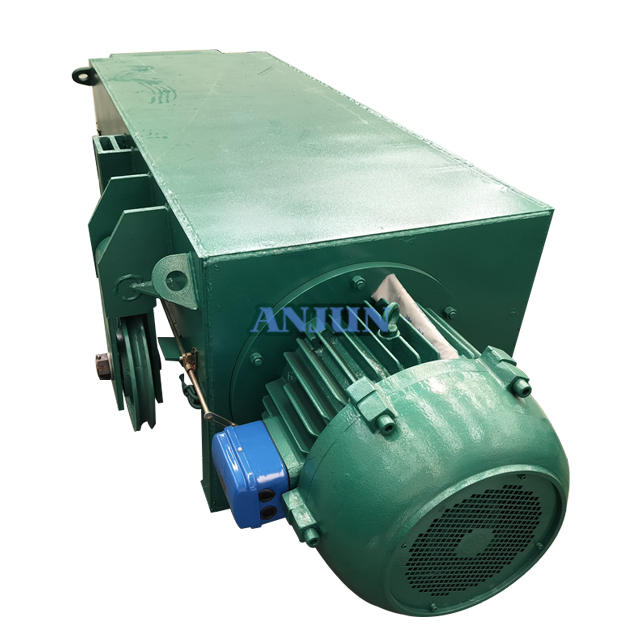

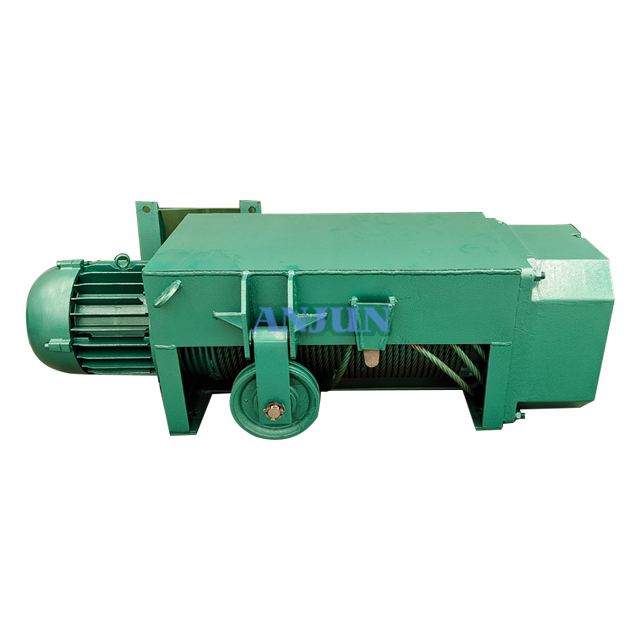

Insulated and Antimagnetic Electric Hoist hoist
The CD/MD type insulated and antimagnetic electric hoist is equipped with insulation points on the electric trolley, balance beam, hook device, etc., and each insulation point is used at normal temperature (temperature 20~25℃, relative humidity ≤85%) The resistance measured by a 1000V megohmmeter is ≥1MΩ, and the hook head is an antimagnetic electric hoist. This product is a very economical, safe and reliable lifting equipment in electrolysis and smelting.

1. The insulation materials are made of epoxy phenolic laminated glass cloth panels and thermosetting resin industrial hard round layer rods, with safe and reliable insulation performance.
2. The novel insulating and antimagnetic hook device adds advantages
A. The hook shell and hook pulley are made of thickened high-strength insulating materials, with stronger wear resistance and insulation. B. The hook head is forged from 304 stainless steel, with more reliable magnetic properties. C. Built-in locking device, more Safe and reliable
3. The hook head is designed according to the performance requirements of 304 stainless steel, which is safer and more reliable.
4. Many varieties and specifications, wide range of lifting and running speeds
5. The CD/MD electric hoist has the characteristics of easy operation and high crawler tracks.
6. CD/MD series derivative products, with strong parts versatility and after-sales service
Insulated and Antimagnetic Electric Hoist Working Environment
Transportation and lifting equipment for electrolytic aluminum workshop, electric hoist for electrolytic aluminum workshop, insulated antimagnetic electric hoist for electrolysis workshop, electric hoist for hoisting and transportation in smelting workshop, insulated wire rope electric hoist, electric hoist for electrolysis/smelting workshop, insulated crane


Insulated electric hoist performance:
The insulated electric hoist is a derivative of the mature electric hoist. In addition to its insulation performance, it also has other features of the mature electric hoist:
1. Easy to operate;
2. There are many product specifications and models, and a wide range of lifting and operating speeds;
3. Common parts and easy after-sales service;
4. Simple structure and small size.
