6inch activated carbon filter
carbon treater cartridge

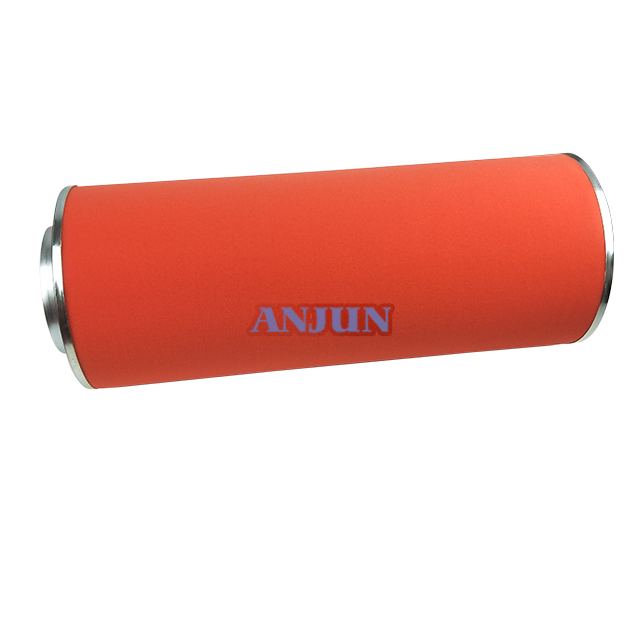

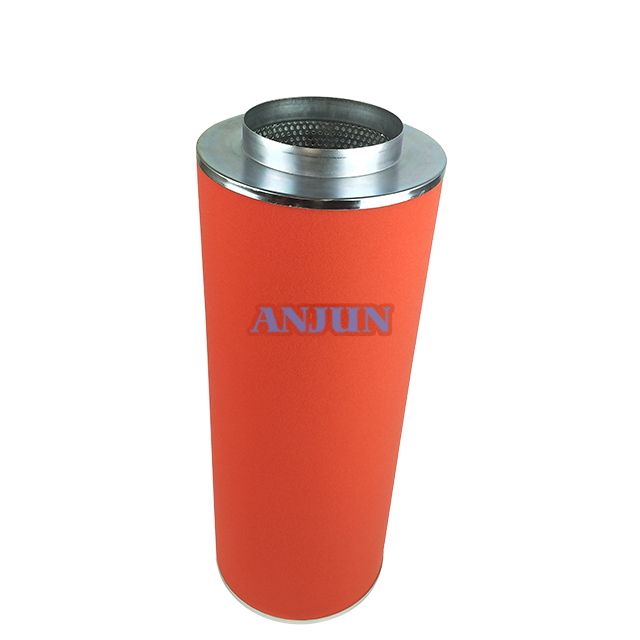

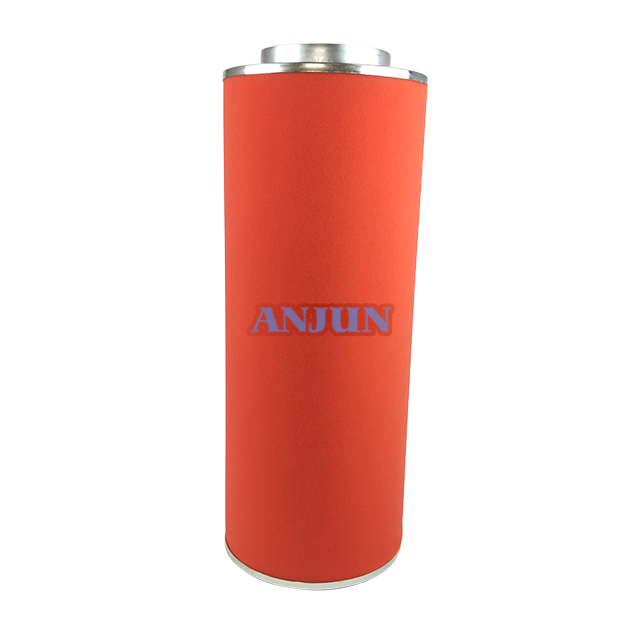

Activated Carbon Air Filter
6inch activated carbon filter
carbon treater cartridge
Activated Carbon Air Filter

Air Handling Systems Industrial Smoke Pre Synthetic 6 In Carbon Air Filter

Material
High performance Coconut carbon
End Caps
Galvanized Steel
Center Tube
Galvanized Steel
Length
180 mm
Share With:
Product Description
The filter cartridge is good at removing objectionable tastes, chlorine , unpleasart odor, color, spore, lead, and microorganisms. The activated carbon the filter cartridge used has been processed by acid-washing and wing-selection and the end caps are fixed with special steel instead of general non-woven cloth . So no carbon fines releasing from the filter cartridge, at the same time, it keeps a high flow.

Performance Features
1.The product has liability insurance
2. Filter Media: Coconut Shell Carbon
3. Replaced every 6-9 months depends on usage environment
4.Effectiently remove heavy metal such as lead(Pb), Chromium (Cr), Cadmium(Cd)...etc.
5.Remove Chlorine and odor.


Parameter
Technical Details
Load weight(kgs) 9.0
Airflow(m³/h)  900
Connection diameter(mm)
150
OD(mm) 240
Length(mm) 600

More sizes
Part model weight
Kg
Air flow
 m3/h
connection diameter
mm
OD
 mm
length
mm
AJC-200 1.3 200 100 180 150
AJC-350 2.6 350 100 180 300
AJC-225 1.6 225 125 205 150
AJC-430 3.1 430 125 205 300
AJC-470 4.1 470 150 240 300
AJC-900 8.3 900 150 240 600
AJC-1260 13.8 1260 150 240 1000
AJC-660 5.2 660 200 290 300
AJC-1125 10.4 1125 200 290 600
AJC-1600 17.3 1600 200 290 1000
AJC-1320 12.5 1320 250 340 600
AJC-1980 20.8 1980 250 340 1000
AJC-2440 15.3 2440 315 405 600
AJC-3280 25.4 3280 315 405 1000
AJC-4320 33.5 4320 350 440 1200

Applications

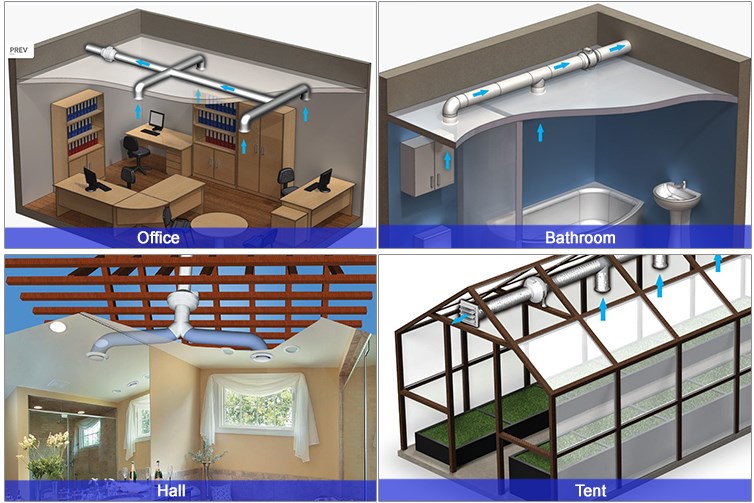

Activated Carbon Air Filter  are suitable for industrial and mining enterprises, workshops, warehouses and other places for summer cooling, ventilation or for general industrial pipeline pressure, air supply, exhaust and roof ventilation. (Europe and North America plant tent exhaust) Sun tent exhaust.
