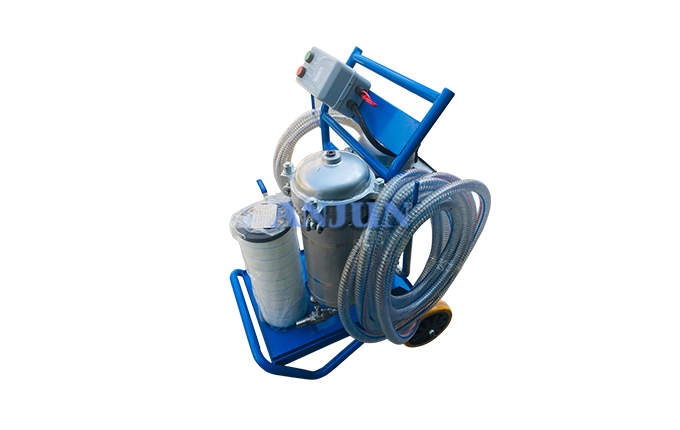

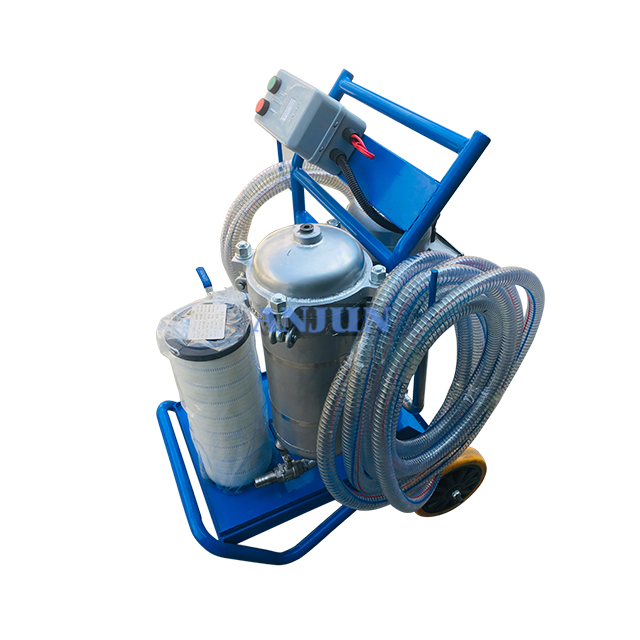

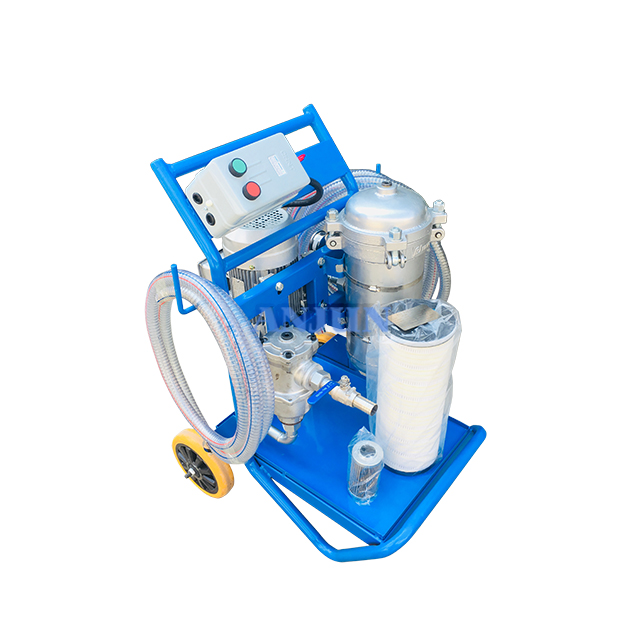

LYC-A50 Oil Filter Trolley Portable Oil Purifier

Model
LYC-A50
Flow rating
50L/min
Filtering precision
3、5、10、20、40μm
Outline dimensions
Custom sizes
Share With:
Product Description
LYC-A50 is used in hydraulic lubrication systems in various industries to filter out solid particles in the oil and extend the use of hydraulic components. It is also used for oil filtration when refueling the system to improve the cleanliness of the crude oil in the system and for recycling old oil to reduce costs. This oil filter can be independent of the main system and work as a bypass filtering device. It has high precision and low noise, and is easy to use and maintain. The filter element in the fine filter can be selected according to user selection and requirements. Only those with different filtration precisions can be replaced. The filter element can achieve filtration effects of different precisions.
Replace imported filter:HYDAC, PALL, ARGO,PLASSER , TAISEI ,FAIREY-ARLON-PARKER, MP-FILTRI , DONALDSON, MAHLE, STAUFF, VICKERS , ALLISON , ,EPE, SOFIMA ,Emerald, Tai Sang,3R, INTERNORMEN,. American Hankison series, British Domniek-hunter series, INDUFIL filter element, Ultyafiter series, Italy Hiross series, Germany Zender series, Japan SMC series, Italy BEA series, Sweden ATLAS- COPCO series, Sanling, Ivek, Detman, Perkins, Deutz, American CUMMINS , Japan YAMAHA , HONDA, IMC, Robin, MITSUBISHI , UK PERKINSROLLS-ROYCE, Bo Jones-Rolls Royce, Sweden Volvo-PENTA, China KAMA, yigtai, Demasson , Germany EATON Interton Mende Norman, DEMAG , DENISON , FuSheng , HAMM
Replace China filter series: Liming Hydraulic, 707 Heavy-Industrial Institution, Huade Hydraulic, Shen- yang Blower Plant,and Chengtian.

Performance Features
1. This oil purifier includes a special gear pump driven by a motor, which has the characteristics of low noise, strong self-priming ability, and smooth operation.
2. The pressure pipeline is equipped with an overflow protection device, which can effectively protect the safety of the hydraulic system.
3. Use thermal relay protection to prevent motor damage caused by motor overload.
4. The coarse filter at the oil suction port protects the oil pump and extends the service life of the main filter.

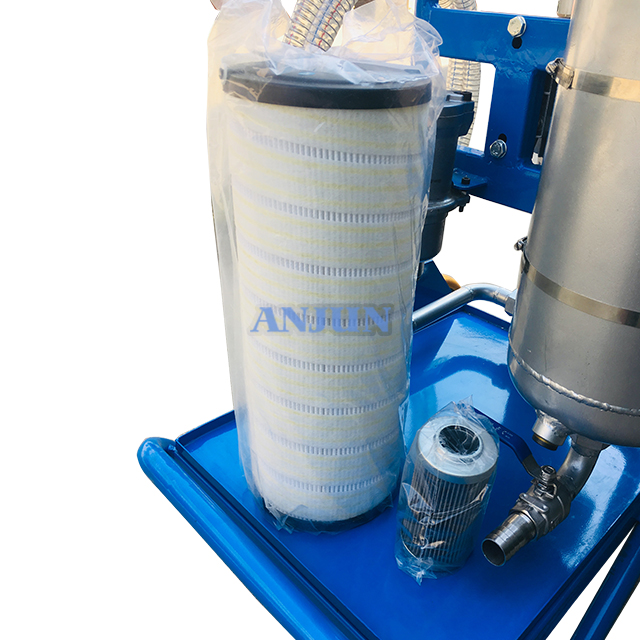

5. The fine filter can choose different precision according to the different needs of users to achieve the required results.
6. The oil filter housing adopts a quick-opening structure. The upper cover can be opened quickly and the filter element replaced without any tools.
7. A pressure gauge is installed on the panel, which continuously indicates the operating status of the system and the degree of pollution of the filter element during operation.




Parameter
Flow rating 50L/min
Filtering precision3、5、10、20、40 micron
Pressure0.5MPa
Working tempreture10℃-80
Motor Power1.1KW
Voltage(V)AC220V,2P, 60HZ

Application:
1.Filtration when refueling the hydraulic lubrication system
2.
Bypass filtration during operation of hydraulic lubrication system
3.Circulation filtration before putting the hydraulic lubrication system into operation
4.
The oil in the hydraulic lubrication system is pumped out without filtering through the pump of the equipment itself.


More Filter Elements Type No.List :
PI8345DRG40 PI8405DRG60 PI8408DRG60 PI8411DRG60
PI8308DRG40 PI8311DRG40 PI8315DRG40 PI8330DRG40
PI8215DRG25 PI8230DRG25 PI8245DRG25 PI8305DRG40
PI8145DRG10 PI8205DRG25 PI8208DRG25 PI8211DRG25
PI8108DRG10 PI8111DRG10 PI8115DRG10 PI8130DRG10
PI5111PS6 PI4160SMX25 PI5108PS6 PI8105DRG10
P-G-UL-12A-100W P-G-UL-12A-10M P-G-UL-12A-10UW P-G-UL-12A-10U
P-G-UL-12A-150W P-G-UL-12A-200W P-G-UL-12A-20UW P-G-UL-12A-20U
 P-G-UL-12A-3M P-G-UL-12A-40UW P-G-UL-12A-40U P-G-UL-12A-50UW
P-G-UL-12A-5UW P-G-UL-12A-60W P-G-UL-12A-6M P-G-UL-16A-100W
P-G-UL-16A-10M P-G-UL-16A-10UW 0330D005BN3HC 0330D003BH3HC
0330D020BH3HC 0330D003BN3HC/V 0330D005BN3HC/V 0330D003BH
0330D005BH3HC/V 0330D005BH3HC/EPR
0330D005BH3HC
0330D003BH3HC/EPR
0330D010BN3HC 0330D010BH3HC 0330D010BH 0330D010BH3HC/V
0330D020BN3HC 0330D020BN3HC/V 0330D003BH3HC/V
PI8415DRG60 PI8430DRG60 PI8505DRG100 PI8508DRG100 PI8511DRG100 PI8515DRG100 PI8530DRG100 PI8545DRG100 PI1105MIC10 PI1108MIC10 PI1111MIC10 PI1115MIC10 PI1130MIC10 PI1145MIC10 PI1005MIC25PI4108PS25 PI4111PS25 PI4115PS25 PI4130PS25 PI4145PS25 PI4205PSVST25 PI4208PSVST25 PI4211PSVST25 PI4215PSVST25 PI4230PSVST25 PI4245PSVST25 PI5105PS6PI5111PS6 PI5115PS6 PI5130PS6 PI5145PS6 PI5205PSVST6 PI5208PSVST6PI3108PS10 PI3111PS10 PI3115PS10 PI3130PS10 PI3145PS10 PI3205PSVST10 PI3208PSVST10 PI3211PSVST10 PI3215PSVST10 PI3230PSVST10 PI3245PSVST10 PI4105PS25
G00584 G00585 G00586 G00587 G00589 G00590 G00591 G00592 G00593 G00594 G00595 G00597 G00598 G00599 G00600 G00601 G00602 G00603 G00754 G00756 G00758 G00759 G00793 G00794 G00795 G00796 G00797 G00798 G00799 G00801 G00966 G00967 G00968 G00969 G00970 G00971 G00973 G00974 G00976 G00977 G00978 G00979 G00980 G00981 G00983 G00984 G00986 G00987 G00988 G00989 G00990 G00991 G00993 G00994 G00996 G00997 G00998 G00999 G01000 G01001 G01003 G01004 G01066 G01067 G01068 G01069 G01070 G01071 G01086 G01087 G01088 G01089 G01090 G01091 G01096 G01097 G01098 G01099 G01100 G01101 G01116 G01117 G01118 G01119 G01120 G01121 G01279 G01279Q G01280 G01280Q G01281 G01281Q G01282 G01282Q G01283 G01284 G01298 G01299 G01300 G01301 G01301Q G01302 G01302Q G01303 G01304 G01313 G01313Q G01314 G01314Q G01315 G01315Q G01316 G01316Q G01317 G01318 G01333 G01334 G01335 G01335Q G01336 G01336Q G01337 G01338 G01344 G01347 G01349 G01350 G01354 G01359 G01367 G01368 G01369 G01370 G01371 G01372 G01387 G01388 G01389 G01390 G01391 G01392 G01400 G01401 G01402 G01403 G01404 G01405 G01420 G01421 G01422
FC1090Q002BS FC1090Q005BS FC1090Q010BS FC1090Q020BS FC1091Q002BS FC1091Q005BS FC1091Q010BS FC1091Q020BS FC1092Q002BS FC1092Q005BS FC1092Q010BS FC1092Q020BS FC1093Q002BS FC1093Q005BS FC1093Q010BS FC1093Q020BS FC1094Q002BS FC1094Q005BS FC1094Q010BS FC1094Q020BS FC1095Q002BS FC1095Q005BS FC1095Q010BS FC1095Q020BS FC1096Q002BS FC1096Q005BS FC1096Q010BS FC1096Q020BS FC1097Q002BS FC1097Q005BS FC1097Q010BS FC1097Q020BS FC1098Q002BS FC1098Q005BS FC1098Q010BS FC1098Q020BS FC1099Q002BS FC1099Q005BS FC1099Q010BS FC1099Q020BS FC1111Q005BS

P560400 HC8400FKS16H SO-636 R928016873 HC8314FKN39H HP1352A10AN 01NR6306VG10BP G-UL-12A-50UW-DV CU100A06N HC9601FDS13H HP0651A10AN

P-VN-08A-150W MF4002P10NBP01 V6021B4V05 V6011B1V10 CU850A25N PI8211DRG25 R939059246 R928017317 936705Q 01.NR.1000.4G.10 UE209AS03H

UE319AS20Z UE319AS13H HC8304FKN16H HC8314FKN16H D141G25G 2600R020ECON2 2600R020BN4HC 0660D003BH4HC-V 0330D010BHHC 0180MA010BN

936978Q 944440Q HC9600FKS16H HC9600FKS8H HC9600FKS13H ZNGL02010101 HC8314FKS16H HC8300FCN39H 2600R020ON HP0653A06AN MF1801A06HB

V3051006 FTCE2A10Q 930099Q R928006899 R928006836 R928005981 A152G10/P165876 ME3310FPN30H SFE180G125A1.0 FCM-100-L-N-3B10-B

OF5CM10P6N2B10B R928005873 HC9604FKP13H 0850R020BN3HC/-KB CAA38-5SB G04291 G04292 932612Q ZNGL02011001 930118Q



More Type Filter:
Suction oil filter
Return oil filter
High pressure oil filter
Medium pressure oil filter
Low pressure oil fitler
Pipeline oil filter
Fuel tank oil filter
Duplex oil filter
Ects.
