Technical Details
Size：
OD: 69mm.110mm.Can be produced according to customer requirements.
ID: 28mm.30mm
Lengths: 5” 10” 20” 30” 40” 50” 60”
Material: polypropylene (PP), polysulfone (PS), polytetrafluoroethylene (PTEF), nylon (NL), polyvinylidene fluoride(PVDF)
Support/deflector: Polypropylene Core / End Cap: Polypropylene
Sealing ring: silicone rubber,EPR,NBR,fluorine rubber
Max. operating temperature: 1Bar 80 ℃, when the temperature exceeds 50 ℃, it is recommended to replace the internal support ring
Max. pressure differ:4.0Bar@room temperature
Max. reverse pressure difference: 2.0Bar@room temperature

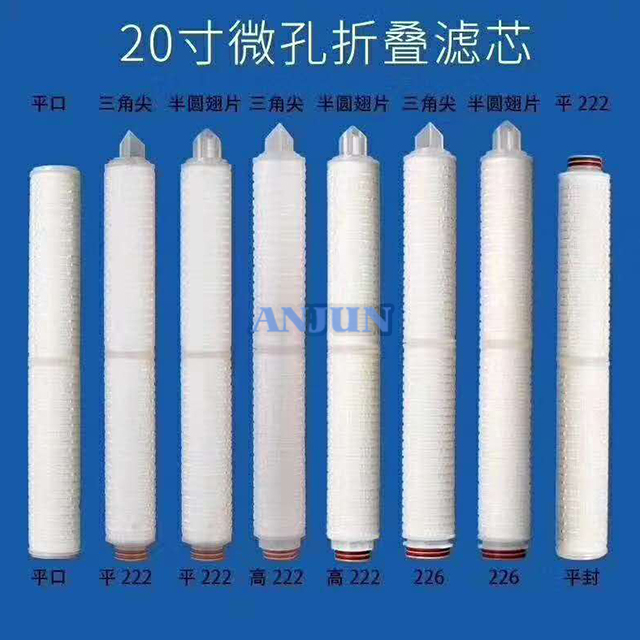

Cap Types
Advantages
Excellent chemical compatibility, suitable for filtering strong acid, alkali and organic solvents
Deep folding filtration,large membrane filtration area
Low pressure differ,large pollution capacity, long service life Various filtering accuracy options
Gradual pore size changes provide ultra-high capacity
About this product

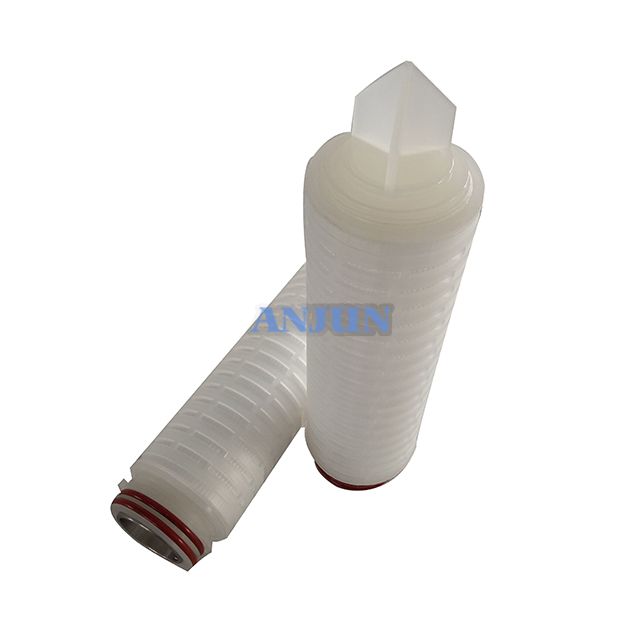

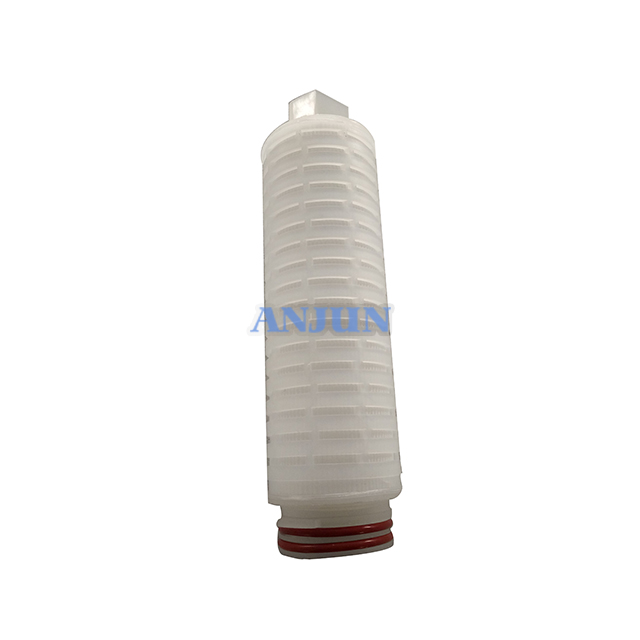

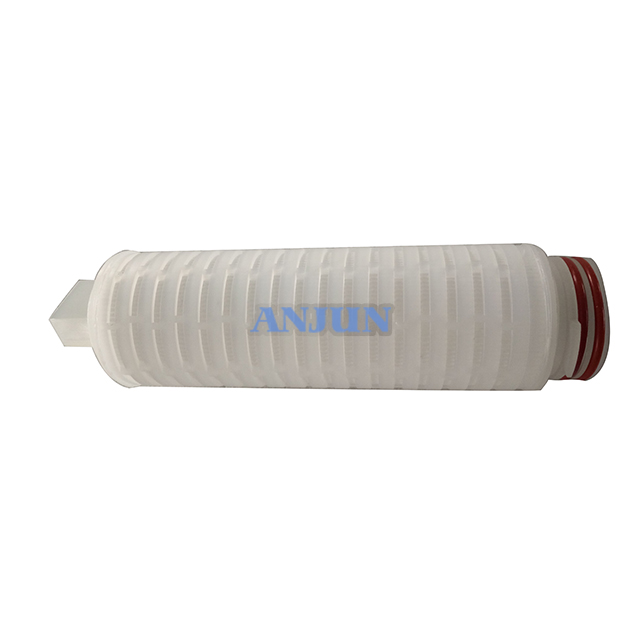

Effective Water Filtration: Our 10-20 Inch PP Pleated Filter Cartridge Water Treatment System is designed to produce fresh water with a filtration rate of 500L/hour, utilizing a 0.1-0.5 micron membrane to remove impurities and contaminants from water.
Durable and Long-Lasting: The system is built with high-quality PP materials and features a 1-year warranty for core components, ensuring reliable performance and longevity.
Versatile Application: Suitable for various industries such as manufacturing plants, food & beverage factories, farms, energy & mining, and more, our system can be easily integrated into existing water treatment systems.
Certified Quality: Our product meets international standards, with ISO 9001 and CE certification, ensuring compliance with global quality and safety regulations.
Comprehensive After-Sales Service: We provide a 3-month warranty and training for customers, along with a machinery test report and video outgoing-inspection, offering peace of mind for users like you.
Application:
Pharmaceutical industry: avariety of injections, liquid and injection of bottles of pre-filtration of water, infusion and a variety of antibiotics, Chinese medicine injection of pre-filtration.
Food industry: alcohol, beverage, drinking water filtration.
Electronic industry: pure water, ultra-pure water pre-filter.
Petroleum and chemical industry: a variety of organic solvents, acid, lye filtration, oilfield water filtration.
