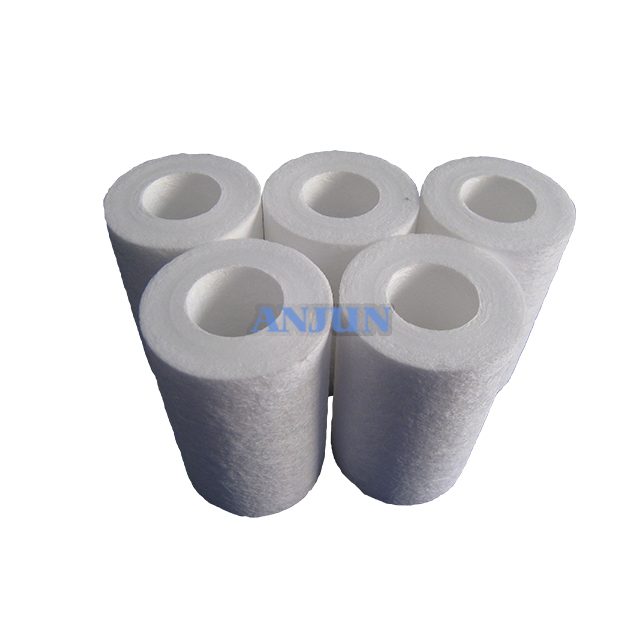

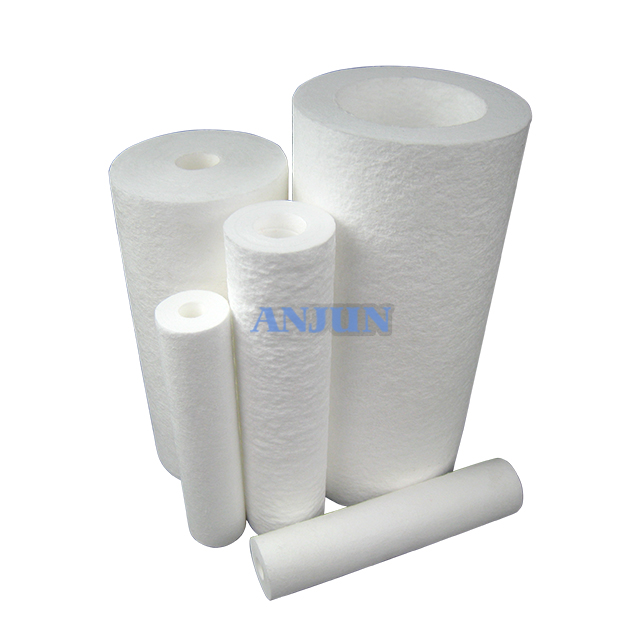

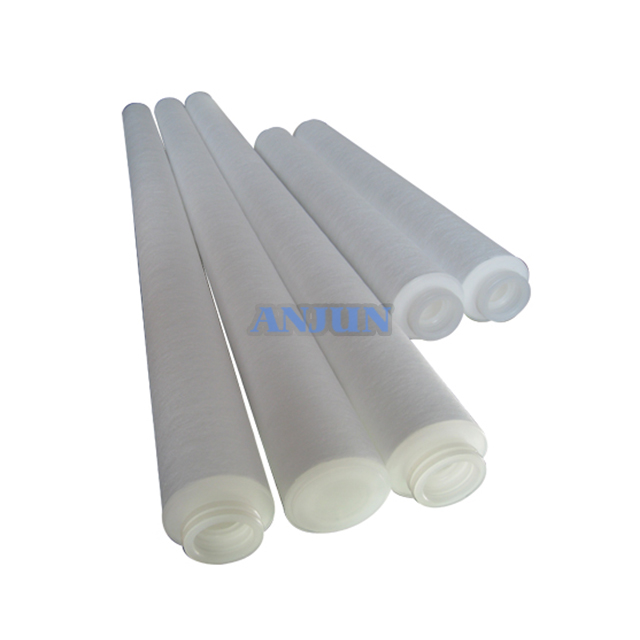

PP Cartridge Melt Blown Sediment Sediment Water Filter

Share With:
Product Description
 PP Melt Blown filter Cartridges are manufactured from 100% Polypropylene construction. They offer excellent filtration and good stability. The unique density gradient construction maximizes efficiency and minimizes pressure drop. This filter will not impart odor or color to the filtered product and has superior chemical resistance for process fluid applications. Optional Grooving effectively doubles the surface area providing lower clean pressure drop, increased dirt holding capacity and longer life.
Parameter
Technical Details
Size:
OD: 63mm.110mm.Can be produced according to customer requirements.
ID: 28mm.30mm
Lengths: 9.75” 9.87” 10” 20” 30” 40” 50” 60”
Material:
Media:pp
End caps:pp
Inside core:pp
Seals: Silicone rubber, ethylene propylene rubber, nitrile rubber, fluorine rubber
Performance:
Rating range: 1μ,3μ,5μ,10μ,25μ,50μ,75μ,100μ,150μ
Maximum temperature:80°C
Maximum differential pressure: 21℃,2.0bar

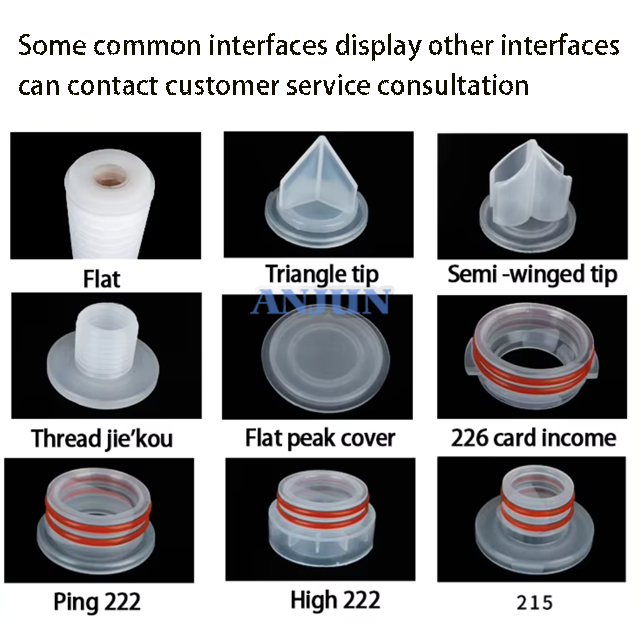

Cap Types

Advantages

.High filtration precision, uniform structure, long service life
.Formed by hot melt without adding any adhesive
.The surface fiber structure is strengthened and the hair removal is not easy
.Surface deep - hole trench structure, decentralized flow direction, reduced flow resistance

Application:
Pharmaceutical industry: avariety of injections, liquid and injection of bottles of pre-filtration of water, infusion and a variety of antibiotics, Chinese medicine injection of pre-filtration.
Food industry: alcohol, beverage, drinking water filtration.
Electronic industry: pure water, ultra-pure water pre-filter.
Petroleum and chemical industry: a variety of organic solvents, acid, lye filtration, oilfield water filtration.
