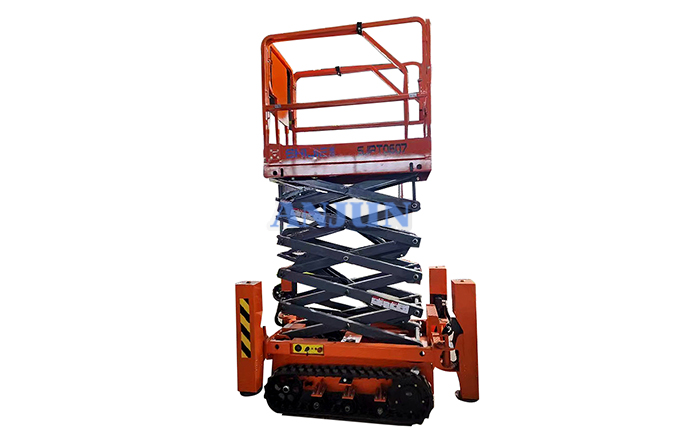

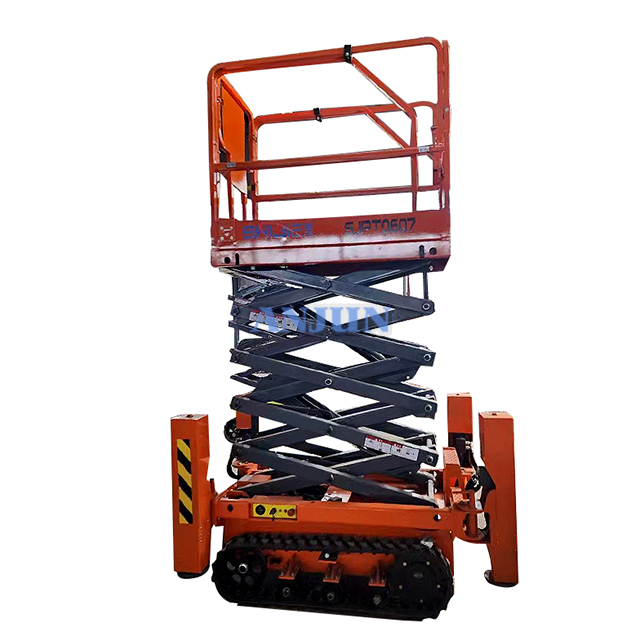

Manufacturer Adjustable Self Propelled Mobile Hydraulic Electric Scissor Lift Work Table

Scissor Lift Platform Description

Product Description:
Self-propelled scissor lifts are electric and available in a variety of models. Our self-propelled scissor lifts are construction-oriented and can improve operator productivity on demanding outdoor sites. They have the advantages of strong capacity, easy operation, safety, reliability and good quality. First of all, the buffer force of the lifting platform during the lifting process may be several times greater than the weight. In order to enable the lifting platform to lift stably and ensure the safety of the track chassis, the lifting chassis is placed on the hydraulic support system at the beginning of the design.
The biggest advantage of the self-propelled scissor lift compared to the manual mobile scissor lift is that people or workers can stand on the top platform to control the movement of the scissor lift, which is more convenient.

If you want to know more specifications, please get a quote!

Model	HTLP0.3-4	HTLP0.3-6	HTLP0.3-8	HTLP0.3-10	HTLP0.3-12	HTLP0.3-14
Safe working load	320kg	320kg	320kg	320kg	320kg	320kg
Safe working load of extension	113kg	113kg	113kg	113kg	113kg	113kg
Max number of worker	6m	8m	10m	12m	14m	16m
Max platform height	4m	6m	8m	10m	12m	14m
Overall length	2600mm	2600mm	2600mm	2600mm	2600mm	3200mm
Overall width	1170mm	1170mm	1170mm	1170mm	1170mm	1500mm
Overall height	2160mm	2280mm	2400mm	2520mm	2640mm	2210mm
Working platform size	2400* 1170mm	2400* 1170mm	2400* 1170mm	2400* 1170mm	2400* 1170mm	2800* 1400mm
Platform extension size	0.7m	0.7m	0.7m	0.7m	0.7m	0.7m
Min ground clearance	0.1m	0.1m	0.1m	0.1m	0.1m	0.1m
Wheelbase	1.89m	1.89m	1.89m	1.89m	1.89m
Min turning radius	2.20m	2.20m	2.20m	2.20m	2.20m	2.20m
Lifting motor/driving motor	24V/4.0KW	24V/4.0KW	24V/4.0KW	24V/4.0KW	24V/4.0KW	24V/4.0KW
Machine travel speed	0.8KM/H	0.8KM/H	0.8KM/H	0.8KM/H	0.8KM/H	0.8KM/H
Battery	6V/230AH	6V/230AH	6V/230AH	6V/230AH	6V/230AH	6V/230AH
Machine weight	2000kg	2200kg	2400kg	2600kg	2800kg	3500kg

Scissor Lift Platform Feature

The user can control the mechanical lifting and walking without going down the lifting platform, and can control the equipment to drive to other working places on the platform. The equipment itself has the functions of walking and steering, without manual traction or external power supply. It is flexible and convenient to move, making aerial work convenient and fast, and it is an ideal aerial work equipment for modern enterprise production.

Standard Configuration: Optional Configuration:
1,Ac 380V 1,AC 220V,DC(for max 12m platform)
2,Emergency lowering valve 2,AC/DC ,manual hydraulic pump
3,Leveling device with supporting screw 3,Italian hydraulic system
4,Waterproof electric box 4,Explosion proof electric control system
5,Emergency stop button 5,Rubber solid tire ,Extension platform,Electric moving device

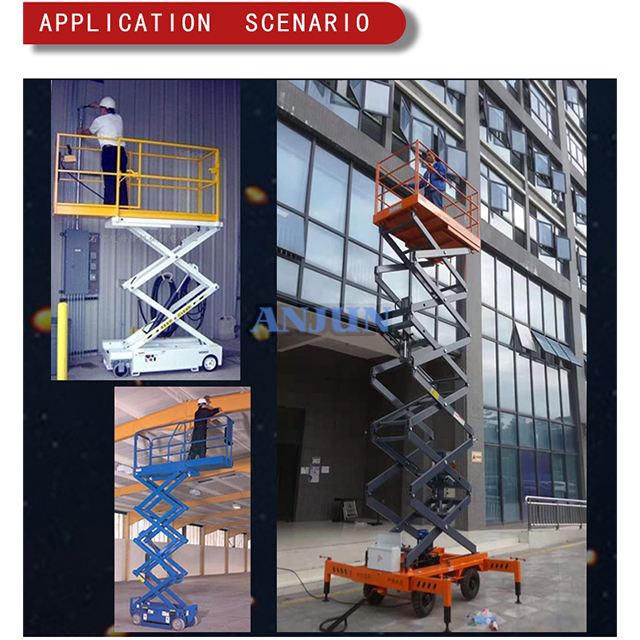

Scissor Lift Platform Application

Suitable for a wide range of operations such as airport terminals, stations, wharfs, shopping malls, stadiums, residential properties, factories and mines.
