Small Pneumatic Vacuum Feeder Conveyor

Place of Origin:
Henan,China
Power
1.5-5.5kw
Width or Diameter
300mm
Core Components
Motor, Bearing, Gear, Pump, Gearbox, Engine
Share With:

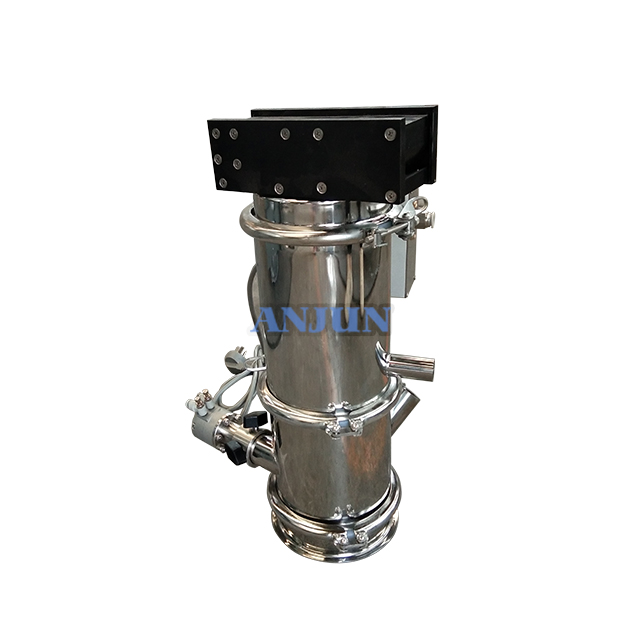

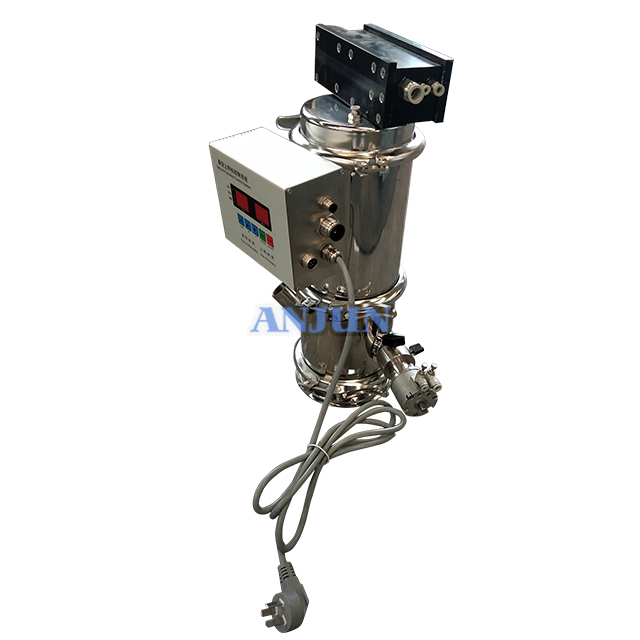

Pneumatic Vacuum Feeder Conveyor Description
Vacuum feeder, also known as a vacuum conveyor, is a dust-free airtight pipeline conveying equipment for conveying granular powder materials by means of vacuum suction. Using the air pressure difference between the vacuum and the ambient space, the airflow in the pipeline is formed to drive the powder or particle-shaped material movement, so as to complete the conveying of materials.
The equipment consists of a blowback cylinder, vacuum generator, control system, rotary cylinder, feeding pipe, suction pipe, feeding port, air filter element, vortex air pump and control panel.
Pneumatic Vacuum Feeder Conveyor Feature
1.This machine adopts the principle of vacuum airflow, stainless steel composite structure, built-in stainless steel blowback device, which can automatically control the feeding of various powder and granular materials.
2.Multiple control airbag air supply systems can continuously and uninterruptedly transport materials, greatly improving the production capacity of transported materials.
3. Equipped with an air filter element filtration system to filter impurities in the air, and the entire conveying process is in a closed state to prevent the material from being polluted.
4.High-power vortex blower or Roots blower is used to compress air with high efficiency.
5. The equipment is made of stainless steel 304, which fully meets the transportation requirements of food materials.
6. The entire material conveying process is controlled by a microcomputer PLC, which is easy to operate and highly automated.
7. It can be designed as continuous conveying feeding or intermittent conveying feeding, which can be customized according to the customer's capacity and demand
Pneumatic Vacuum Feeder Conveyor Application
This equipment is widely used in the transportation and feeding of materials in the fields of food, pharmaceutical, plastics and chemical industry. It can be directly connected with mixers, crushing refiners, granulators and other equipment to form a production line.
In the food field, the vacuum feeder can be used for lifting and feeding cereals such as soybeans, oats, peas, grains, peanuts, sesame and other materials, it is an important conveying equipment for the pre-processing of plant-based beverage production lines. Usually, the vacuum feeder is directly connected to the crushing mill for feeding the material into the mill hopper.
At the same time, in the beverage production line, it can also be used for the transportation of powdery materials such as additives, and sugar. it is usually directly connected to a high-speed mixer and used for dissolving powder, thereby reducing labor intensity and improving equipment production efficiency.
