Vacuum Feeding Conveying Machine With Dust-free Feeding Station

Place of Origin:
Henan,China
Power
1.5-5.5kw
Width or Diameter
450 mm
Core Components
Motor, Bearing, Gear, Pump, Gearbox, Engine
Share With:
Vacuum Feeding Conveying With Dust-free Feeding Station Description

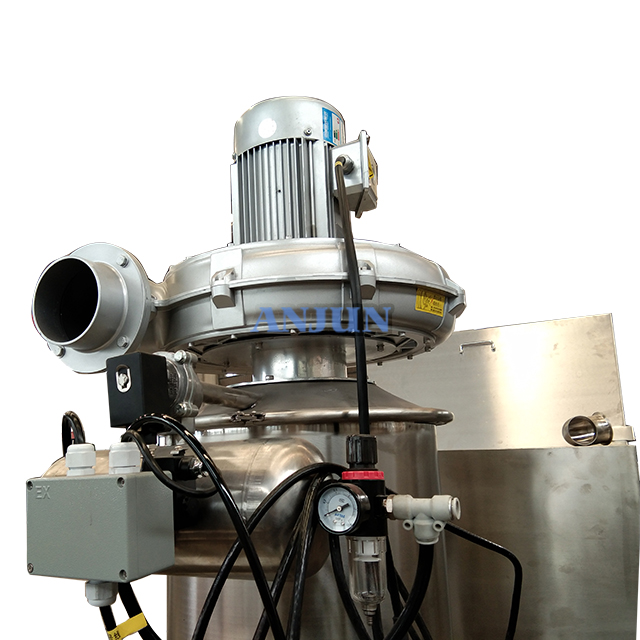

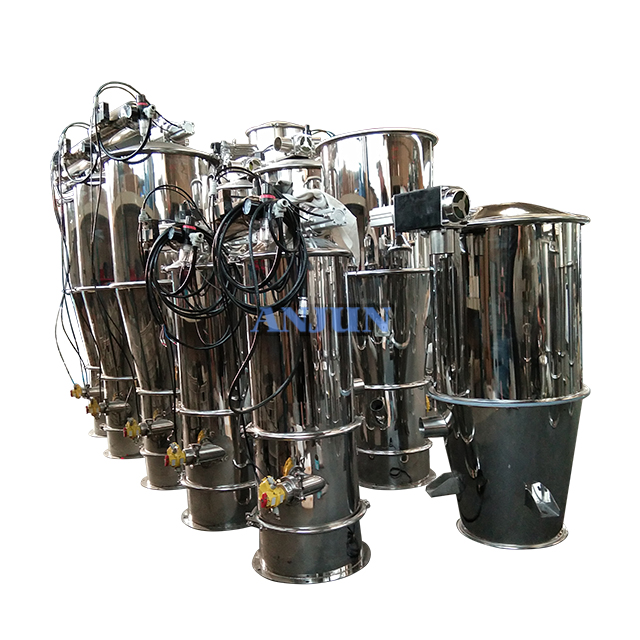

Industry Electric Vacuum Powder Feeder Conveying Machine is a kind of conveying equipment with dust-free and sealed pipeline, which can transmit granular and powder materials by means of vacuum suction. This transfer system consists of the vacuum pump (without oil and water), stainless steel suction tube, flexible hose, PE filter or SS 316 filter, compressed air cleaning device, pneumatic discharging device, vacuum hopper and automatic level control device. This machine accords with GMP standard, and it is the ideal feeder for food and chemical industry.

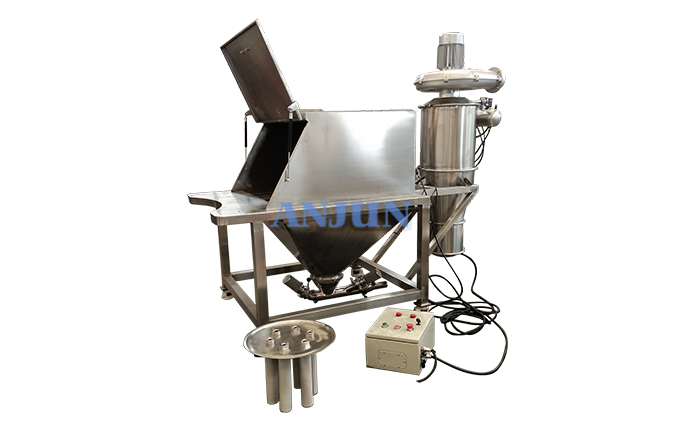

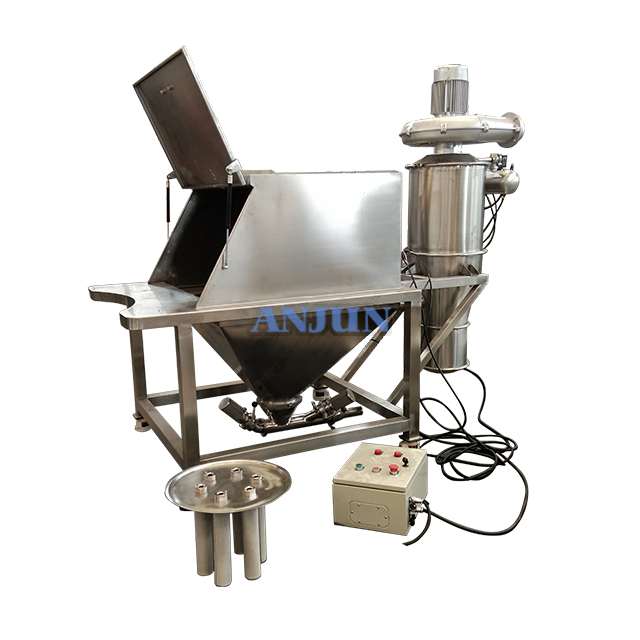

The dust-free feeding machine is a non-standard product designed to protect the operator’s health more effectively and to meet the requirement of easy observation, easy operation,easy cleaning and GMP compliance.The dust-free feeding station is divided into dust removal system,operating system and down feed screening system.Composition of the system equipment :feeding bin,vibrating screen,filter,fan,vibrating motor and other structures.
The dust-free feeding station is mainly designed according to the specific needs of users,which effectively isolates the material dust generated during feeding and the operator’s human body,and under the negative pressure of the fan, the dust is sucked into the filter to achieve”gas-material separation”,and when the material collects more,it fails into the bin due to its own weight.
Dust-free feeding station has the advantages of easy operation, easy observation,easy maintenance,easy cleaning, etc, which protects the health of operators.the equipment is made of 304/316L ,which is durable.


Vacuum Feeding Conveying With Dust-free Feeding Station Feature
1.Durable and Reliable Construction: Our Powder Vacuum Conveyor is crafted with high-quality stainless steel, ensuring a long-lasting and corrosion-resistant performance. The heat-resistant material feature allows for safe operation in various environments.
2.Customizable to Meet Your Needs: As per your requirement, the product is available in various voltage options, including 380v, to accommodate diverse industrial settings. This flexibility ensures seamless integration with your existing infrastructure.
3.Efficient and Versatile: With a capacity range of 100-6000kg/h, this vacuum powder feeder conveyor is suitable for various industries, including food & beverage, manufacturing plant, and energy & mining. It can handle different materials and volumes with ease.
4.Comprehensive Warranty and Support: We offer a 1-year warranty for the entire machine and 1-year warranty for core components, including the pump. Additionally, we provide a machinery test report and video outgoing-inspection for your peace of mind.
5.Easy Operation and Maintenance: Our Powder Vacuum Conveyor features simple operation, allowing your team to quickly adapt to its use. With a protection grade of IP55, it ensures safe operation in harsh environments.


Vacuum Feeding Conveying With Dust-free Feeding Station Application
This equipment is widely used in the transportation and feeding of materials in the fields of food, pharmaceutical, plastics and chemical industry. It can be directly connected with mixers, crushing refiners, granulators and other equipment to form a production line.
In the food field, the vacuum feeder can be used for lifting and feeding cereals such as soybeans, oats, peas, grains, peanuts, sesame and other materials, it is an important conveying equipment for the pre-processing of plant-based beverage production lines. Usually, the vacuum feeder is directly connected to the crushing mill for feeding the material into the mill hopper.
At the same time, in the beverage production line, it can also be used for the transportation of powdery materials such as additives, and sugar. it is usually directly connected to a high-speed mixer and used for dissolving powder, thereby reducing labor intensity and improving equipment production efficiency.
