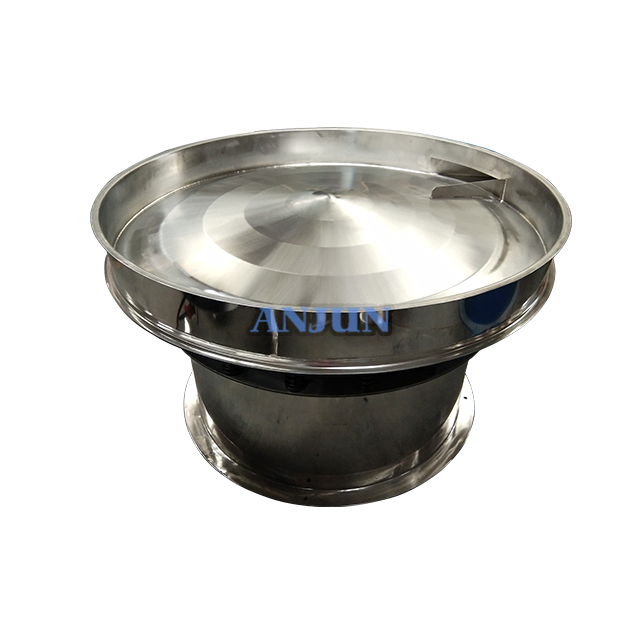

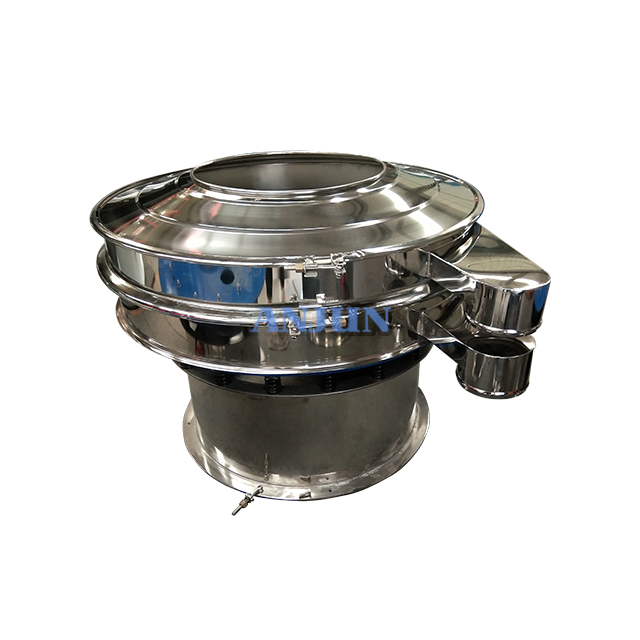

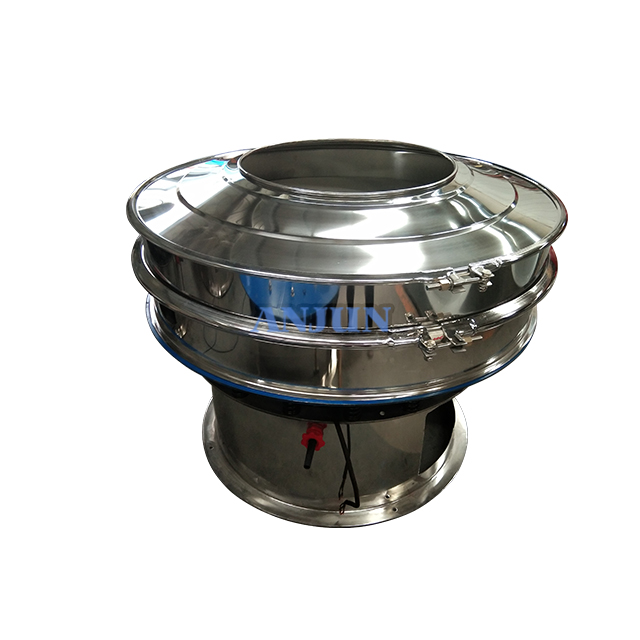

Ultrasonic Vibrating Screen Sifter Separator For Bio Powder

Place of Origin:
Henan,China
Function
Screeningseparationsortingsieving
Motor
Vertical Vibrating Motor
Diameter
1500mm
Share With:

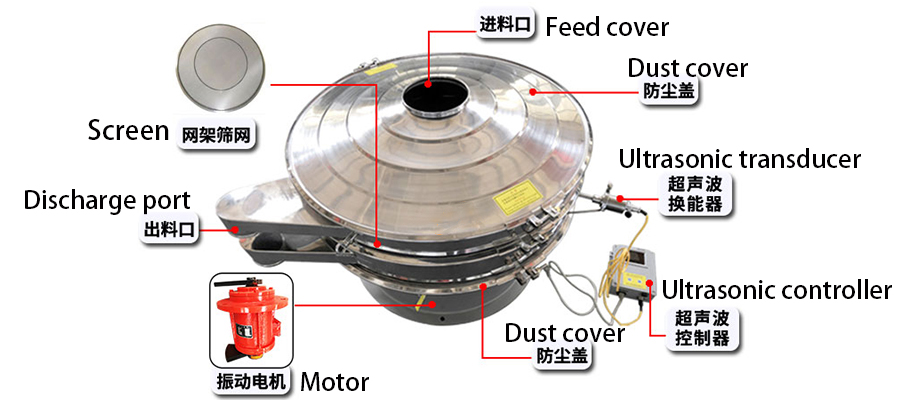

Ultrasonic Rotary Vibrating Screen Description
Ultrasonic vibrating screen converts 220v, 50HZ or 110v, 60HZ electric energy into 18HZ high-frequency electric energy, inputs it into the ultrasonic transducer, and turns it into 18HZ mechanical vibration, thereby achieving the purpose of efficient screening and screen cleaning. Based on the traditional vibrating screen, this system introduces a low-amplitude, high-frequency ultrasonic vibration wave (mechanical wave) onto the screen and superimposes a high-frequency, low-amplitude ultrasonic vibrator on the screen. The ultra-fine powder undergoes huge ultrasonic acceleration. , so that the materials on the screen surface are always suspended, thereby inhibiting adhesion, friction, horizontal drop, and other network blocking factors. It solves the screening problems of strong adsorption, easy agglomeration, high static electricity, high fineness, high density, and light specific gravity, making ultrafine powder screening no longer difficult, and is especially suitable for users of high-quality, fine powders.
Ultrasonic Rotary Vibrating Screen Feature
1. Ultrasound adopts integrated circuit board, fully enclosed, digital CPU control, aviation-specific interface; it can work uninterrupted for 12-24 hours without cooling.

2. The screening accuracy is increased by 70%, and the processing capacity is 2-10 times that of ordinary screening machines. The comparison is particularly significant for materials that are difficult to screen, such as silicon carbide powder, cemented carbide powder, coffee powder, etc.

3. The screening mesh can reach 600 mesh, and the screen can be completely self-cleaning, making it easy to operate and maintain.

4. Really solve the screening problems such as strong adsorption, easy agglomeration, high static electricity, high fineness, high density, and light specific gravity.

5. Ensure that the characteristics of the materials being processed remain unchanged.
Ultrasonic Rotary Vibrating Screen Application

Food industry:
sugar powder, starch, salt, rice flour, milk powder, soy milk, egg powder, soy sauce, juice, tea, brewed drinks, dairy products, candy, snacks, quick-frozen foods, condiments, protein, food additives, etc.

Pharmaceutical industry: industrial drugs, traditional Chinese medicine powder, granular pills, pellets, etc.

Chemical industry: resins, coatings, industrial drugs, cosmetics, paints, etc.

Metallurgical powder industry: aluminum powder, lead powder, copper powder, ore, alloy powder, welding rod powder, manganese dioxide, electrolytic copper powder, electromagnetic materials, grinding powder, refractory materials, kaolin, lime, alumina, heavy calcium carbonate , quartz sand, etc.

Other industries: waste oil, waste water, dyeing and finishing waste water, papermaking, additives, activated carbon, etc.
