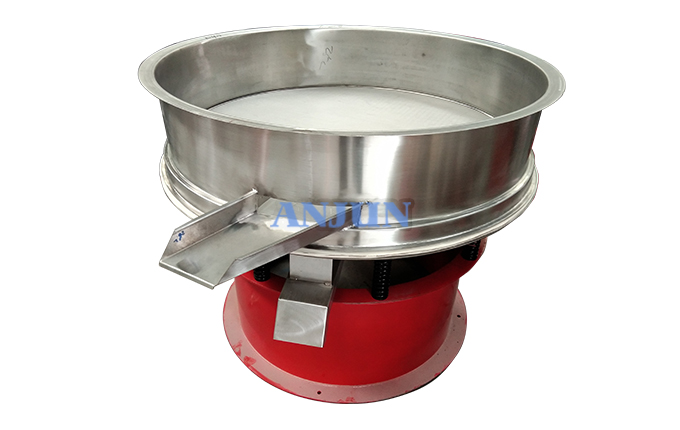

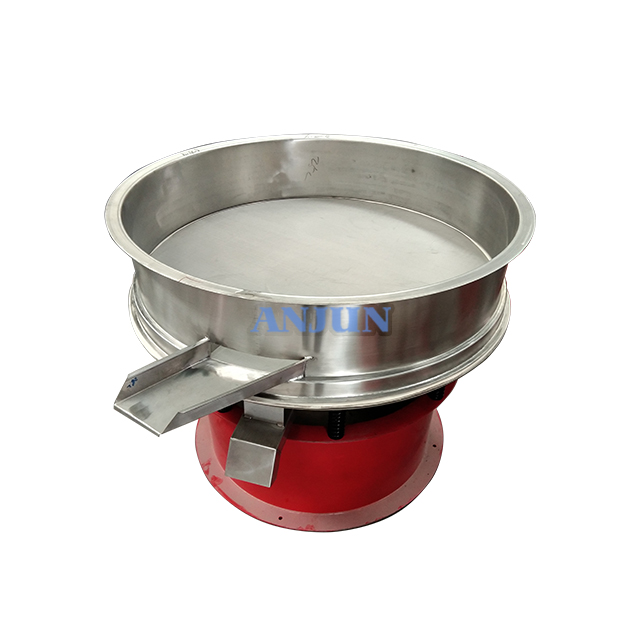

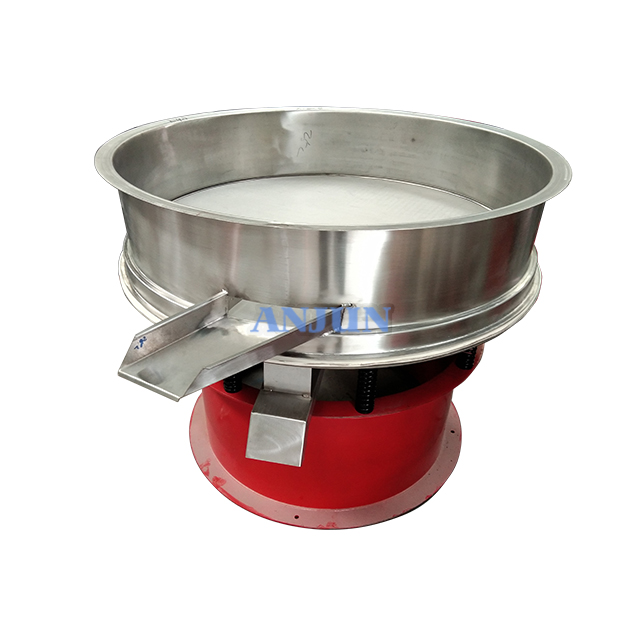

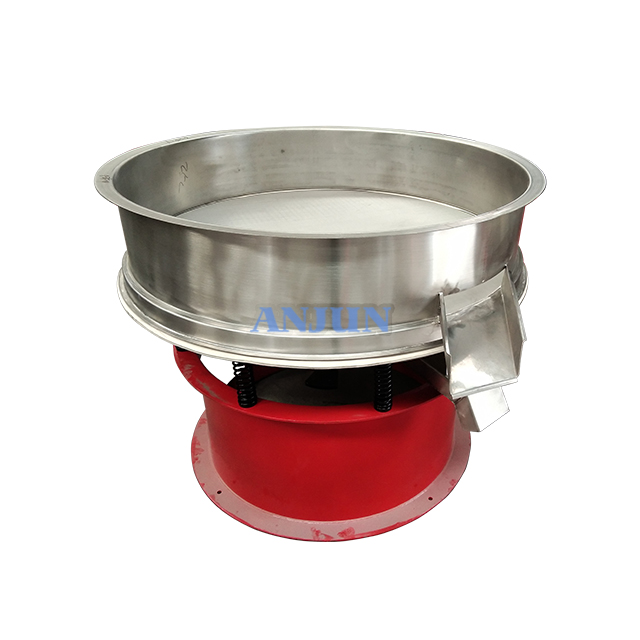

High Frequency Vibrating Screen Sieve For Ceramic Slurry

Place of Origin:
Henan,China
Function
Screeningseparationsortingsieving
Motor
Vertical Vibrating Motor
Diameter
800mm
Share With:
Vibrating Screen Sieve For Ceramic Slurry Description
       Model     Effective diameter of mesh
                       (mm)
           Speed
          (r/min)
     Exciting force
              (kg)
         Power
            (w)
     AJ-600                         610                                2990                      350                         400
     AJ-800                         760              2990               680                        550
    AJ-1000                         920              2990              1000            1300
    AJ-1300                        1130              2990              1300            1300

Slurry Vibrating Screen Sieve  is a highperformance, low energyconsumption surry fiterscreen designed for thickslurry, viscous materialdifficult to sift. The seriesvibrating screen frame bodyis raised, can effectivelyprevent the slurry splashing,with a fuly closed structurepowder does not fly, liquiddoes not leak, mesh does notblock, automatic discharge,no materia stored in themachine, no dead Angle of thegrid structure, the use of thescreen area increased,
Vibrating Screen Sieve For Ceramic Slurry Feature
1. Compact, light weight, mobility and easy installation. Machine's height can be adjusted quickly.
2. High frequency of vibratory motor, 2800 cycles/minute, significant outcome in sieving glaze.
3. Unique screen design, easy and quick for changing screens.
4. Stainless steel 304 is used extensively throughout each materials contact parts.
Vibrating Screen Sieve For Ceramic Slurry Application
1.Iron ore dressing plant.
2.Tungsten, tin, tantalum, niobium, ore dressing plant.
3.glass raw materials quartz sand, feldspar ore dressing plant.
4.Kaolin concentrator.
5.Metal powder preparation.
6.Black mines, nonferrous metals, building materials and other industries.
