Tumbler screen Sieve potassium carbonate particles Round swing vibration screen

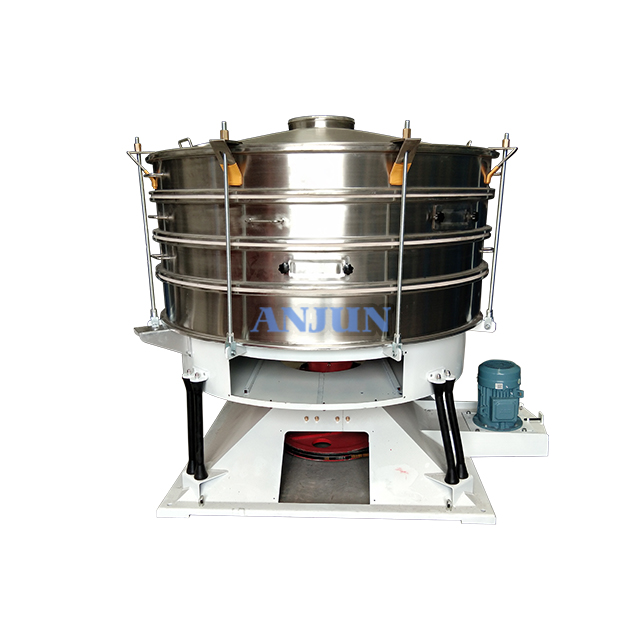

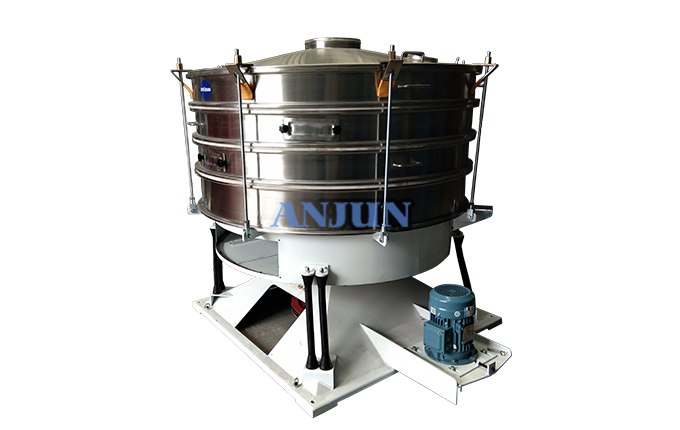

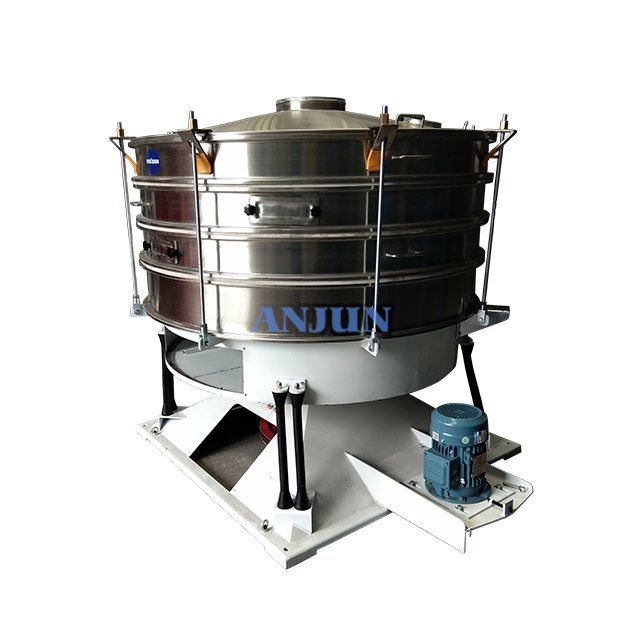

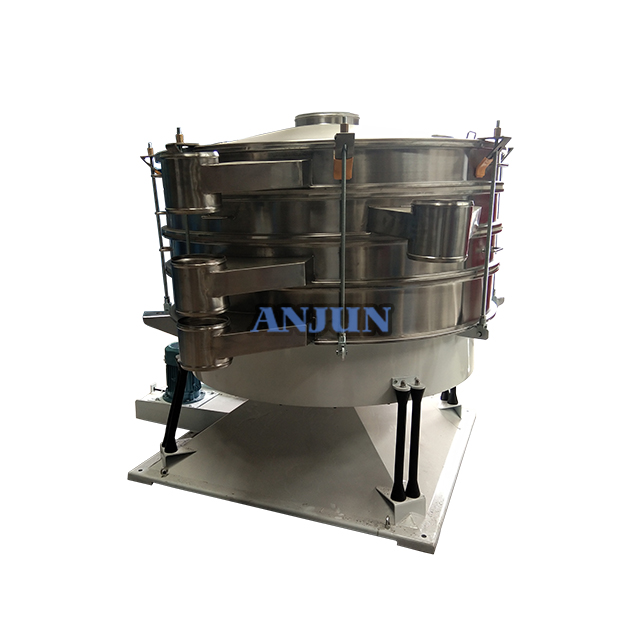

Tumbler Screen Description

Tumbler Screen Sieve For Potassium Carbonate Particles from China

Model	AJ1000	AJ1200	AJ1600	AJ2000	AJ2600
Diameter(mm)	1040	1250	1580	1880	2650
Sieving area(m2)	0.71	1.11	1.83	2.62	2.95
Floor space(m2)	1.2	1.6	2.5	3.6	6.8
Layers	1-5	1-5	1-5	1-5	1-5
Power(kw)	1.5	2.2	2.2/4	2.2/4	5.5
Filter accessories	2 layers	2 layers	1 layers	1 layers	1 layers

Working principle
The machine is drived by a unbalance motor, which is with variable eccentric weights on both sides of motor shaft, The screening time and movement of material on the screen surface can be controlled by adjusting the angle of the two eccentric weights.

The Tumbler Screen is a vibrating screen that simulates manual screening motion to a large extent. It is a vibrating screen that simulates manual screening. It is suitable for screening all kinds of materials, including fine and ultra-fine powder materials. Its screening accuracy, efficiency, screen life and other indicators are 5-10 times that of conventional circular screens.
The tumbler screen can produce horizontal and throwing three-dimensional rolling motion. This principle is similar to manual screening. The material moves in an involute spiral on the screen surface, and the screened material is evenly distributed on the entire surface from the center to the periphery. The radial inclination angle makes the screening material move outward from the center, and the tangential inclination angle makes the material move in a circular motion, thereby realizing the spiral motion. The fine particles pass through the center, while the coarse particles move outward in a circular pattern at the periphery and exit from the outlet.

Tumbler Screen Feature

1. It imitates manual screening, suitable for fine granular materials within 500 mesh, and the screening accuracy is 90-95%.
2. The effective screening area of each layer is 0.28-6.4 square meters, up to 5 layers can be used, and the output is 5-10 times that of the vibrating screen.
3. Since there is no high-speed vibration, fragile materials and agglomerates will not be destroyed, which improves product quality.
4. Three kinds of cleaning devices: jumping ball, ultrasonic wave, rotating drum brush are optional, various anti-blocking technologies, and the sieve holes are not easy to be blocked.
5. Internal sealing, air tightness up to 50mPa, rubber tension spring support for left and right tension, noise can be as low as 75dBa.
6. Low frequency and small load work, the acceleration is 4-5 times lower than that of the vibrating screen, and the service life is longer.

Tumbler Screen Application

--Metallurgy and mining industry: quartz sand, sand, ore, titanium oxide, zinc oxide, etc.
--Paper-making industry:coated slurry, exhaust liquid, paper making liquid etc.
--Chemical industry: resin pigment, calcium carbonate, decorative coatings, medicine, palette, etc.
--Abrasive material and ceramic industry: building sand, mica,  abrasive, refractory material, slurry, etc.
--Mechanical industry: charcoal,powder metallurgy, electromagnetic material and metal powder, etc
--Food industry: sugar, salt, alkali, flour powder, gourmet powder, starch, milk powder, yeast powder,
pollen,food additive, bean milk, juice, etc.
