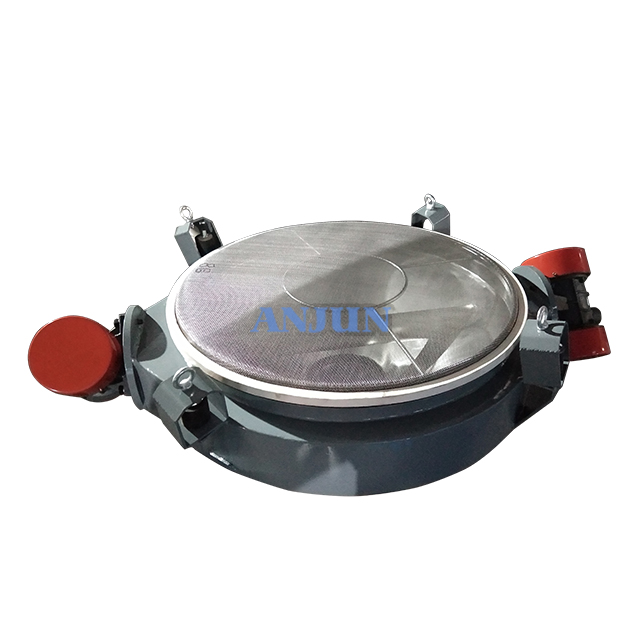

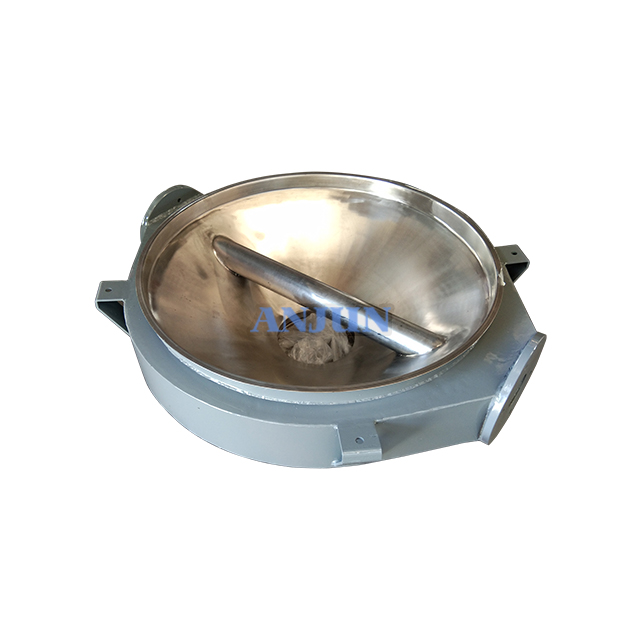

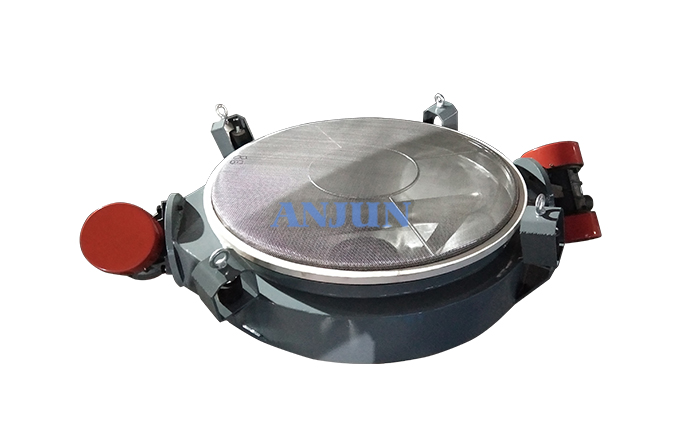

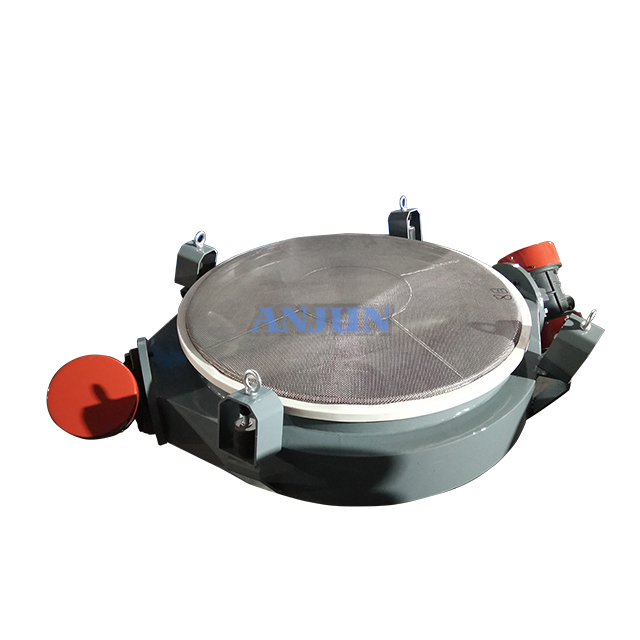

Hanging Straight Screen For Starch Filtration Small Impurity Removal

Place of Origin:
Henan,China
Function
Screening separation sorting sieving
Motor
Vertical Vibrating Motor
Sizes
Customized
Share With:
Straight Row Vibrating Screen Description

Model Power(kw) Screen Surface Diameter
(mm)
Effective Area
(m*)
Volume
(mm)
AJ600 0.12 520 0.2124 740x600x500
AJ800 0.18 720 0.4072 1010x800x600
AJ1000 0.18 890 0.6221 1200x970x640
AJ1200 0.25 1090 0.9331 1430x1170x760
AJ1500 0.55 1390 1.5175 1780x1470x790


Direct discharge grading screen
from China

Straight row vibrating screen, widely known as "safety officer", It is connected to the production system and the automatic sorting speed is much faster than other types of sieving machines. It adopts high frequency vibration motor as excitation source. After the material enters the screen machine, it is subjected to three-dimensional rotary motion on the screen surface by the vibration source force. Powder and agglomeration are fully dispersed and rapidly separated. Qualified materials enter the lower chamber, and foreign bodies and large particles are discharged to the slag discharge port.


Working Principle
The vibrating motor utilizes two sets unbalanced eccentric blocks to convert the rotary motion of vibrating motor into the
resultant force with horizontal direction, vertical direction and inclined direction. Then, the vibrating motor conveys the power to screen surface and achieves the purpose of screening. The machine can change the power and the trajectory of raw material through change the phase angle and the weight of the eccentric block.

Straight Row Vibrating Screen Feature
  Customized Service & High Capacity
Every single part of our sieving machines can be customized to realize high capacity for any industry
   Wide Application
Our  sieving series can be used for the areas of food ,beverage ,chemical ,agriculture ,recycle , metal,etc...
   Large Range of Mesh Sizes
Our mesh sizes are from 500mesh(0.025mm) to 2mesh(8mm) to meet clients’ all sieving accuracy of particle,powder,slurry,etc...
   Auto Sieve Clear System &Cost Saving
The design of auto sieve clear system allows our machines to work long time and reduce maintenance costs.
Straight Row Vibrating Screen Application

It is mainly used for coarse screening and precise screening of granular powder in flour, starch, washing powder, metal powder,additives, chemical industry, non mineral industries, etc., with large processing capacity and easy integration with production lines. It can be selected from 600MM to 1800MM.
