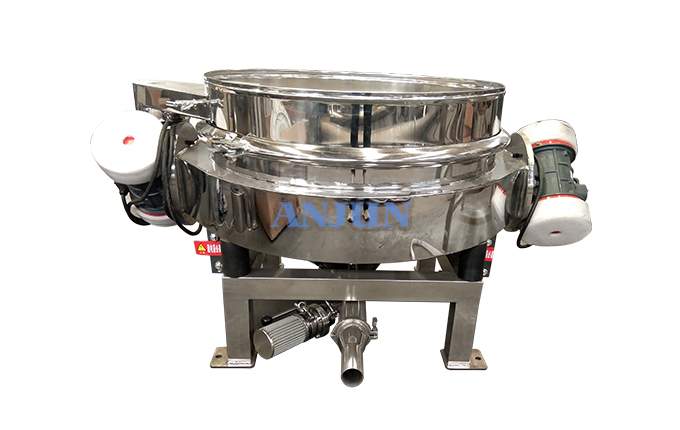

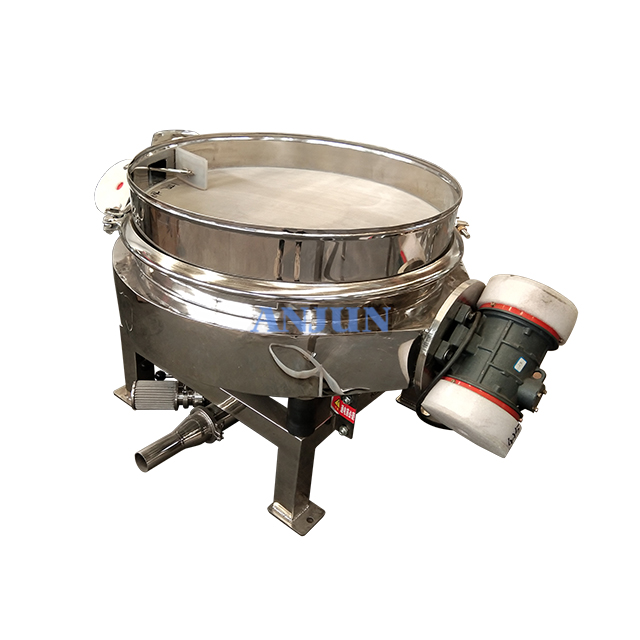

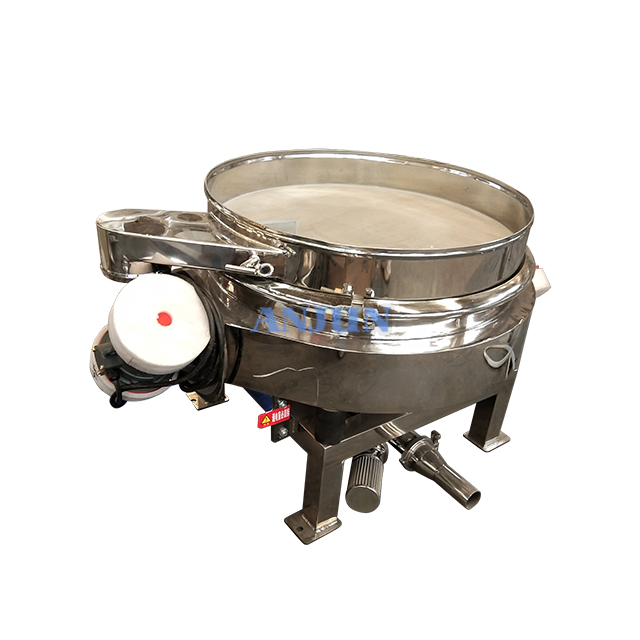

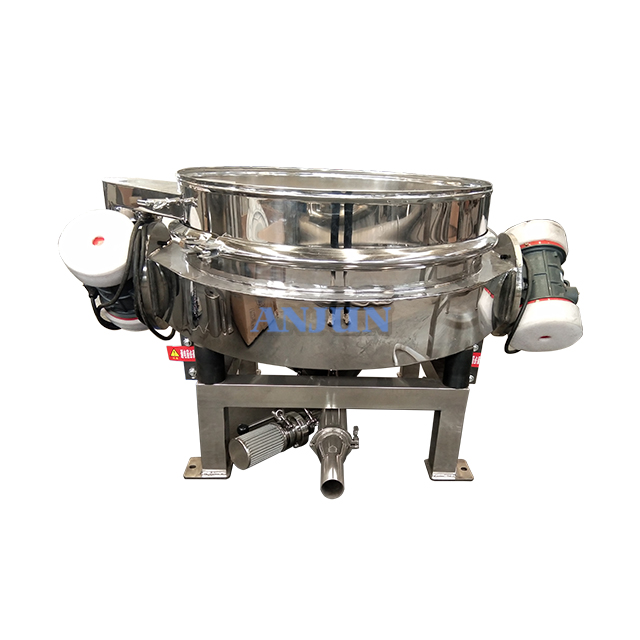

Stainless Steel Straight direct discharge vibrating screen Deck Straight Flow Inline Compact Vibrating Screen for Sieving Flour

Direct Discharge Vibrating Screen Description

Model	Power(kw)	Screen Surface Diameter (mm)	Effective Area (m*)	Volume (mm)
AJ600	0.12	520	0.2124	740x600x500
AJ800	0.18	720	0.4072	1010x800x600
AJ1000	0.18	890	0.6221	1200x970x640
AJ1200	0.25	1090	0.9331	1430x1170x760
AJ1500	0.55	1390	1.5175	1780x1470x790

Direct discharge grading screen from China
Straight row vibrating screen, widely known as "safety officer", It is connected to the production system and the automatic sorting speed is much faster than other types of sieving machines. It adopts high frequency vibration motor as excitation source. After the material enters the screen machine, it is subjected to three-dimensional rotary motion on the screen surface by the vibration source force. Powder and agglomeration are fully dispersed and rapidly separated. Qualified materials enter the lower chamber, and foreign bodies and large particles are discharged to the slag discharge port.

Working Principle
The vibration source is divided into single motor and dual motor structures. The material running trajectory has various adjustment forms, which significantly increases the applicability of the equipment; the direct discharge of materials has a greater processing capacity. It is mostly used for rough screening and precision screening of granular powders in flour, starch, washing powder, metal powder, additives, chemical industry, non-mineral and other industries. It has large processing capacity and can be easily integrated with the production line. Can choose between 600MM to 1800MM.
The vibrating motor utilizes two sets unbalanced eccentric blocks to convert the rotary motion of vibrating motor into the resultant force with horizontal direction, vertical direction and inclined direction. Then, the vibrating motor conveys the power to screen surface and achieves the purpose of screening. The machine can change the power and the trajectory of raw material through change the phase angle and the weight of the eccentric block.

Direct Discharge Vibrating Screen Feature

(1) Beautiful and durable appearance.
(2) Small size, does not take up space, and is easy to move.
(3) Low energy consumption and high efficiency.
(4) It is easy to disassemble and assemble, easy to clean inside and outside, has no sanitary dead corners, and complies with the standards of the food and pharmaceutical industries.
(5) Automated operation, capable of continuous production 24 hours a day
(6) Low silent design.
(7) The seal is tight, the liquid does not leak, and the dust does not fly.
(8) Can be used in single layer or multiple layers, and can be screened at multiple levels at one time
(9) Can be screened to 140 mesh, suitable for rough screening of powders and granules
(10)The output can reach 3-60 tons/hour, which is 2-5 times that of ordinary round materials
(11)The whole machine is tightly sealed to avoid contamination

Direct Discharge Vibrating Screen Application


It is mainly used for coarse screening and precise screening of granular powder in flour, starch, washing powder, metal powder,additives, chemical industry, non mineral industries, etc., with large processing capacity and easy integration with production lines. It can be selected from 600MM to 1800MM.
